2.4G Digital AHD Signal Wireless Transmitter And Wireless Receiver
2.4G Digital AHD Signal Wireless Transmitter And Wireless Receiver

2.4G Digital AHD Signal Wireless Transmitter And Wireless Receiver

Model NO.:
EV-815D
Delivery:
FOB

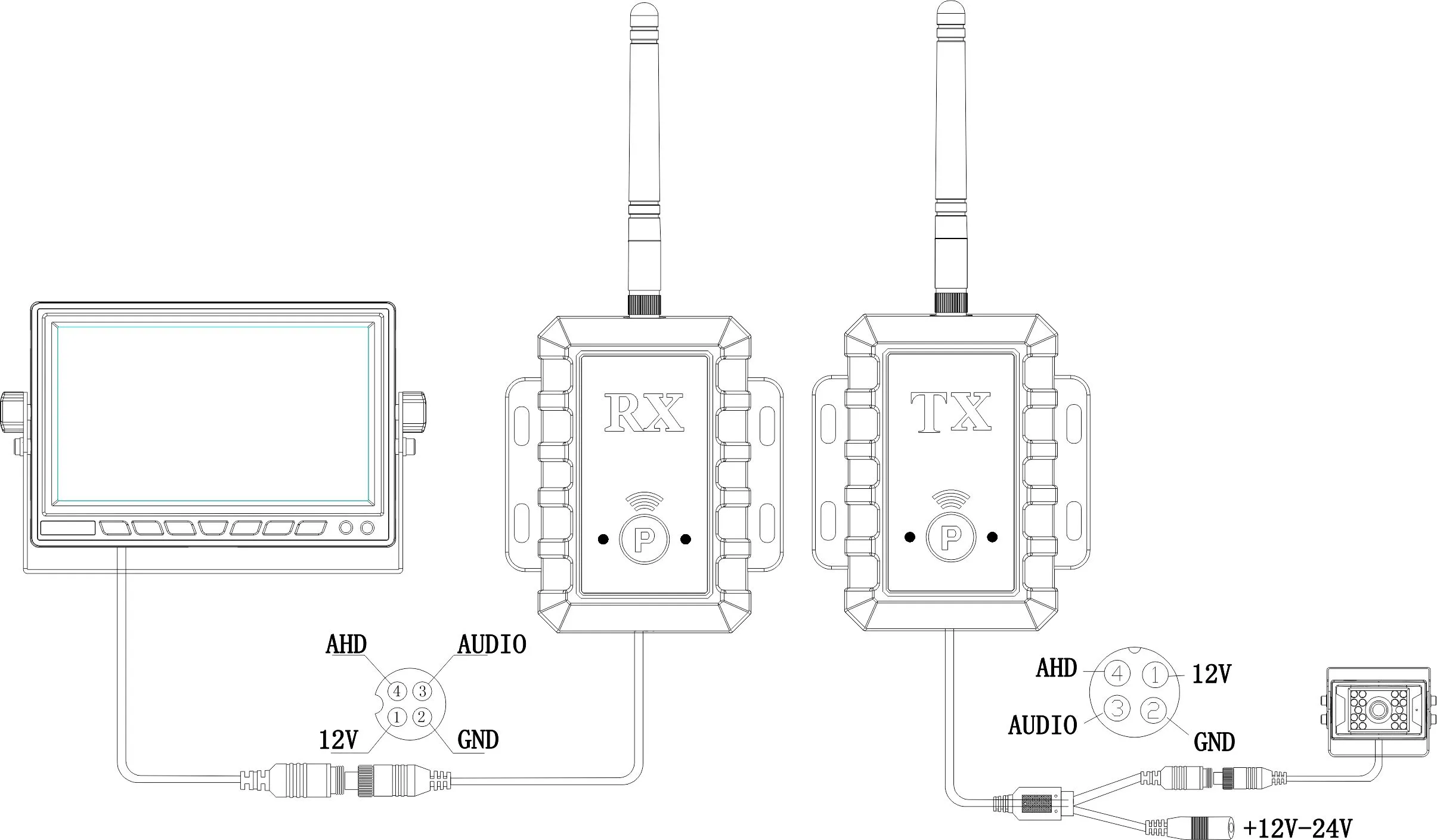

2.4G digital AHD signal wireless transmitter and wireless receiver, One wireless transmitter only pair one wireless receiver, 4P lock connector, 12-24V

2.4G Digital AHD Signal Wireless Transmitter And Wireless Receiver

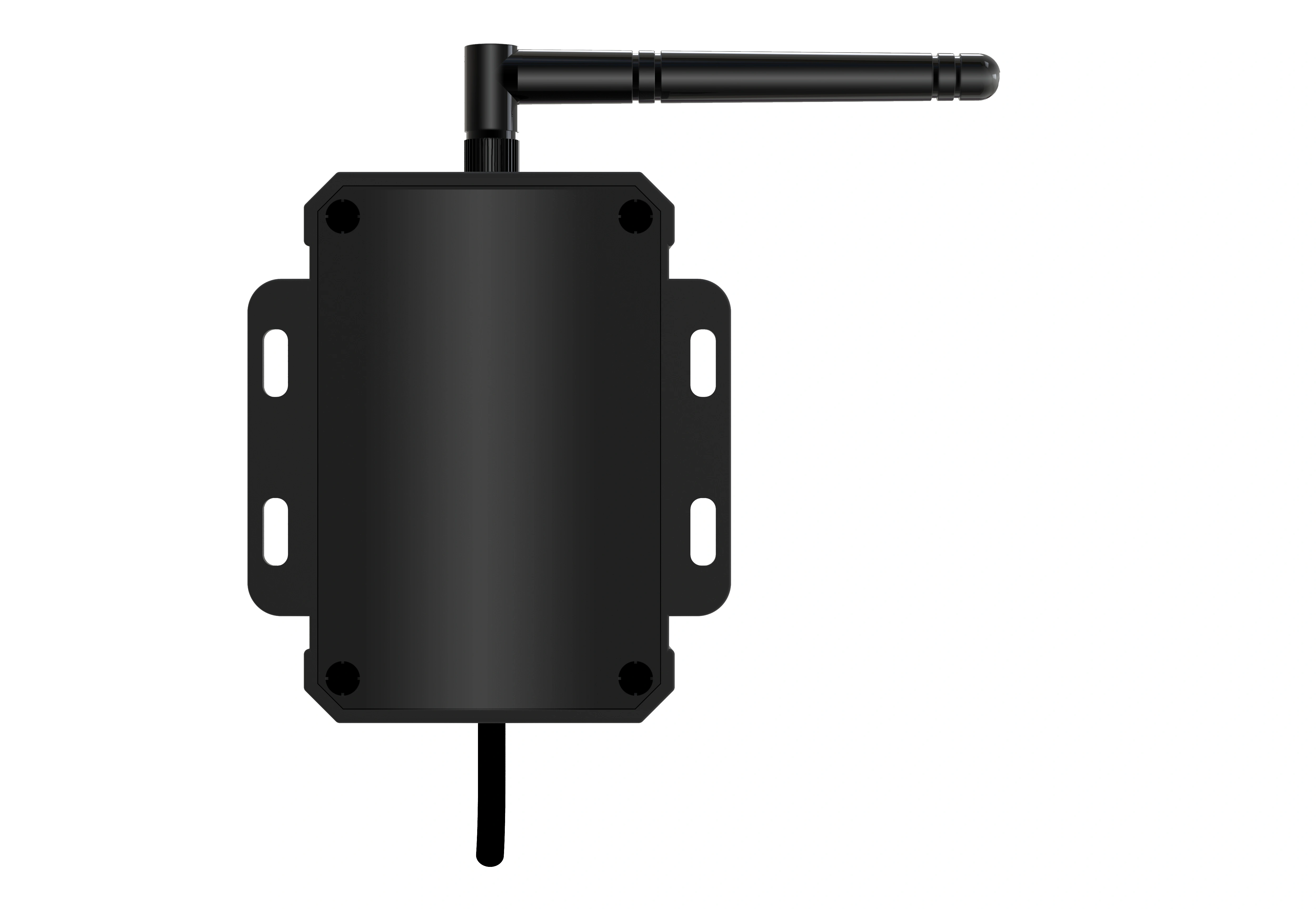

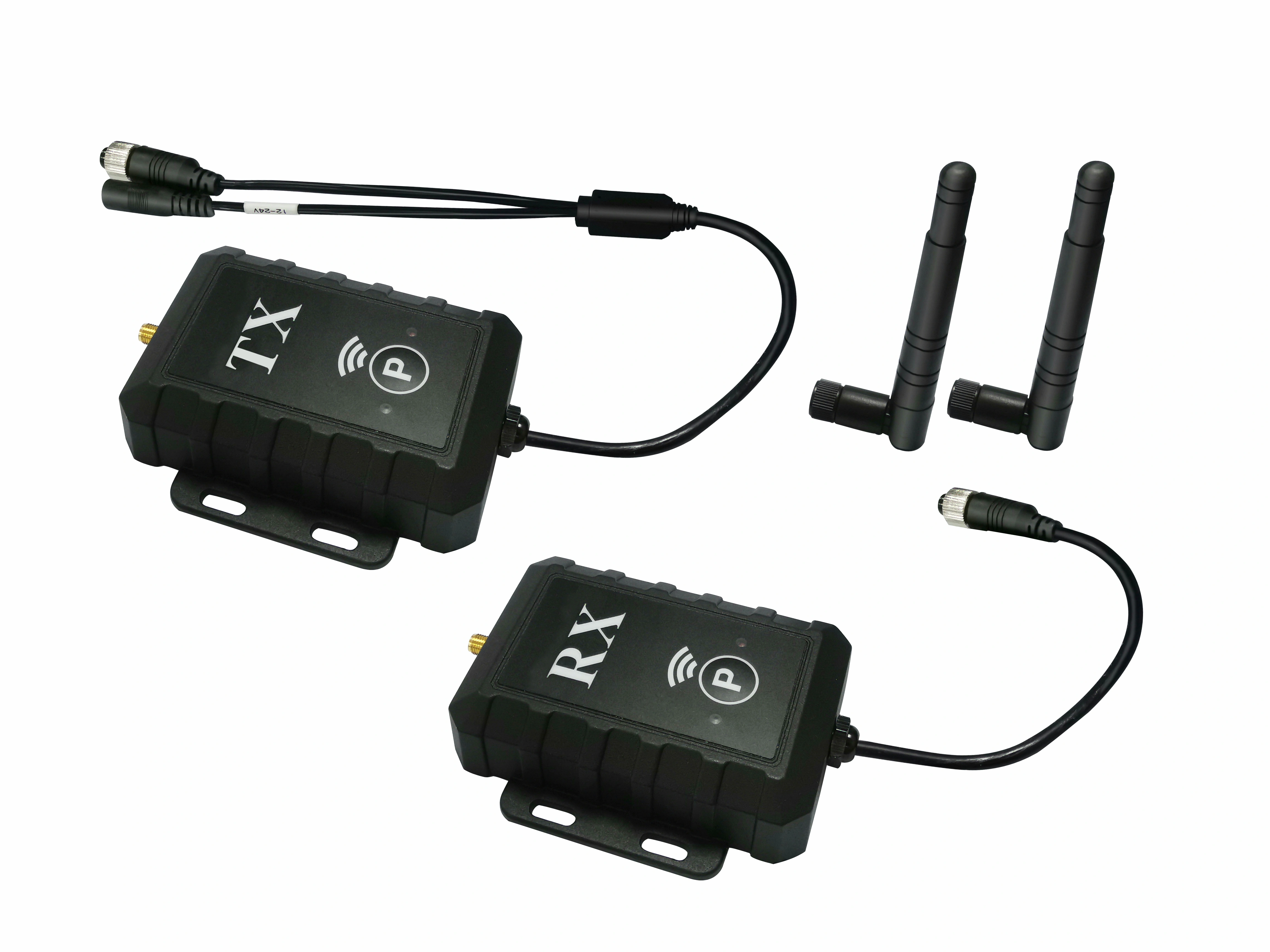

Detail Images




Size

Specifications

Model No.EV-815D

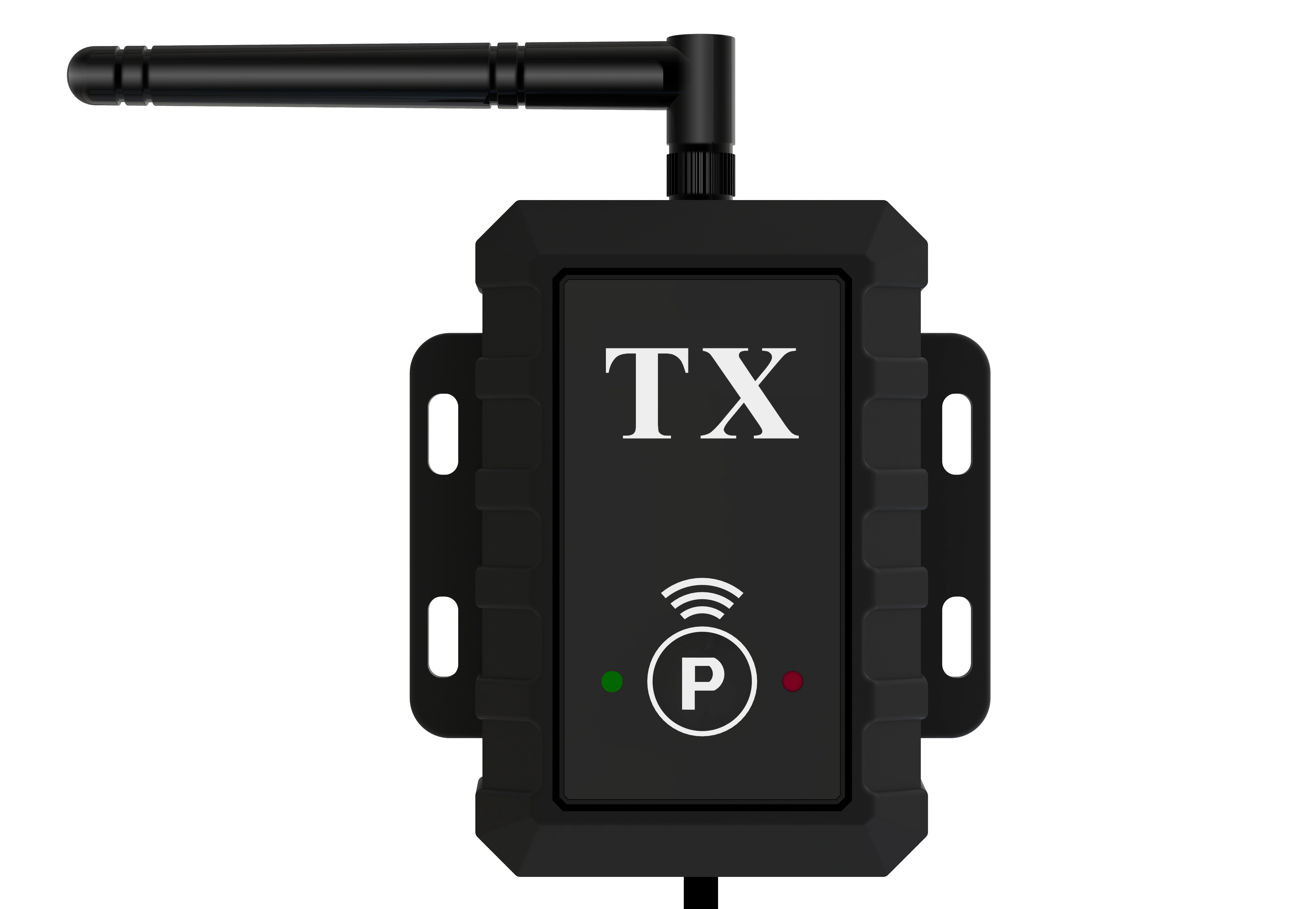

Transmitter:EV-815TX
Receiver:EV-815RX
TX/Transmitter currents12V/200MA
RX/Receiver currents12/200MA
TX/Transmitter  video inputAHD/TVI/CVI/CVBS (Automatically)
RX/Receiver outputAHD 720P/1280x720
AudioNo/ Support one way (Optional)
SystemPAL/NTSC(Automatically)
Wireless spectrum2.4GHz
Operating frequency range2400-2483.5MHZ
Receiver sensitivity-89Dbm
Transmission Distance500M(unobstructed)/30M(obstructed)
Time of delayAbout 90mS -120mS
Boot time2S
Transmission power12Mbps
PairingAutomatically
Indication light

Red light on/off:  Power on / off                                                  Red light flashes: Pairing                                                               Green light on: connect successfully                                           Green light off: signal lost

TX/Transmitter power supplyDC 12V-24V, DC 5.5 connector
TX/Transmitter power outputSupport
RX/Receiver power supplyDC 12V-24V
WaterproofIP68
Vibration rating4G
Operating temperature–20℃ ~ 70℃, RH95%MAX
Storage temperature–30℃ ~ 85℃, RH95%MAX
