7 inch IPS panel 1080P HD Rearview vehicle Monitor
7 inch IPS panel 1080P HD Rearview vehicle Monitor

7 inch IPS panel 1080P HD Rearview vehicle Monitor

Model NO.:
EV-7010MAHD
Delivery:
EXW
Country of Origin:
SHENZHEN, CHINA

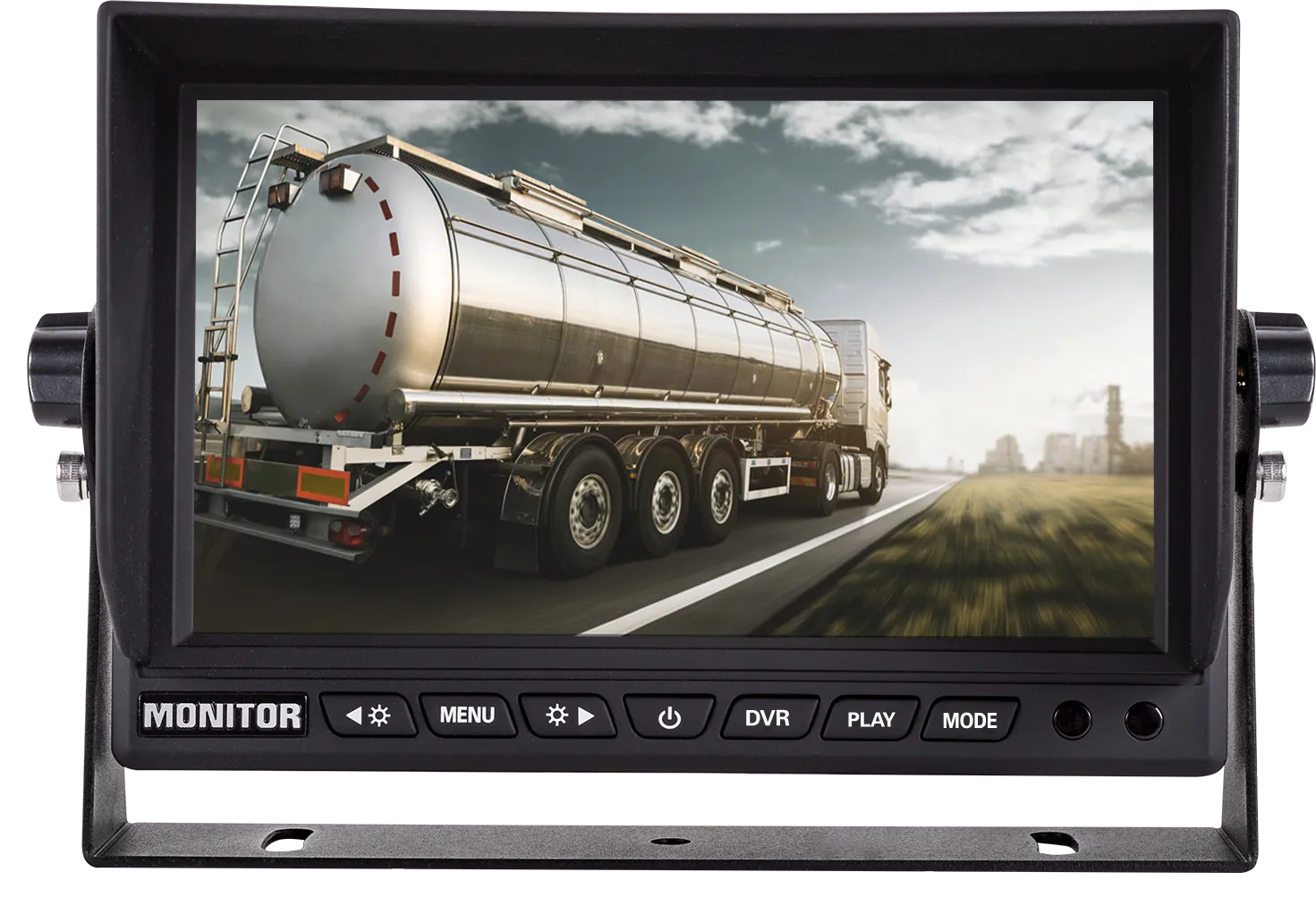

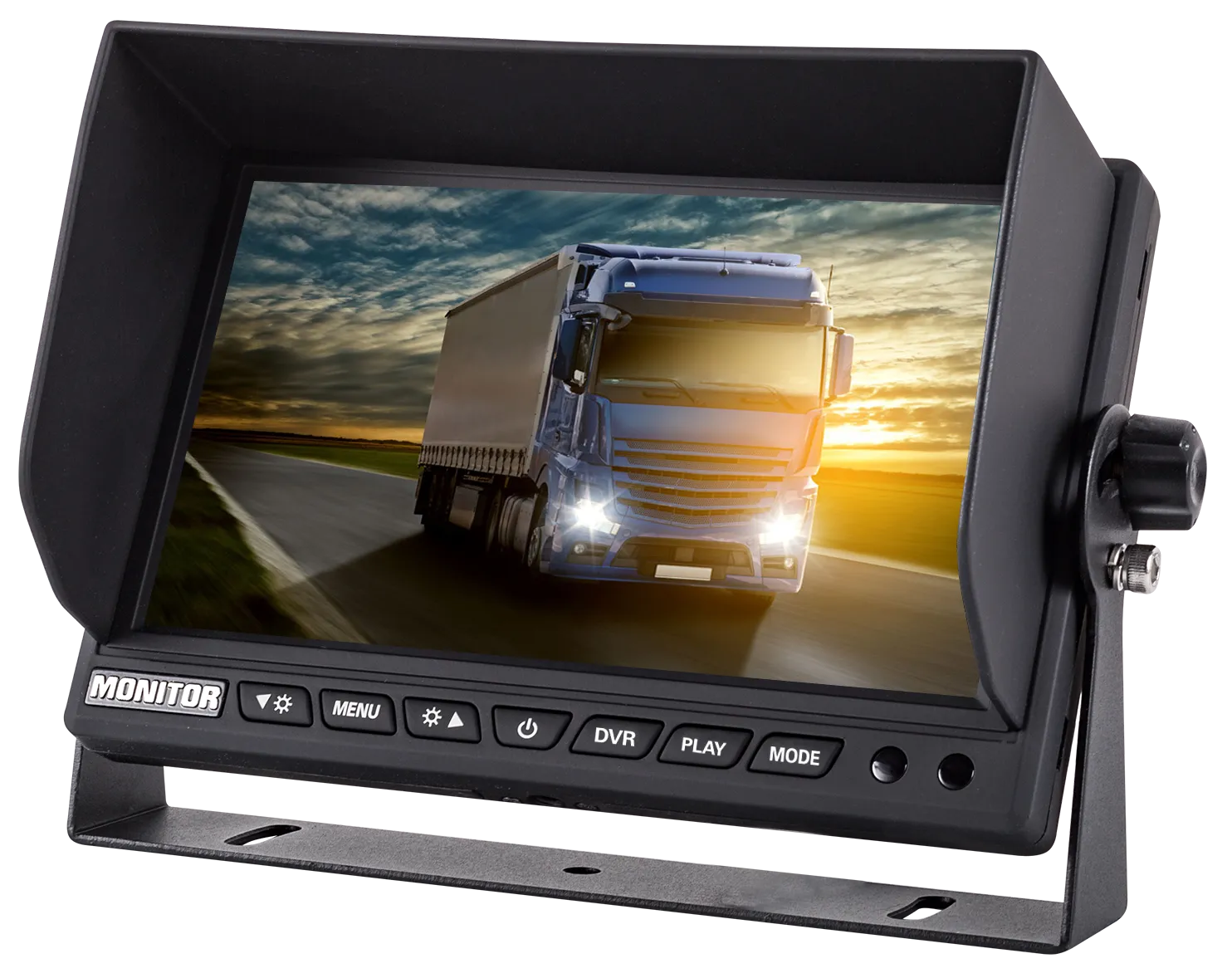

7 inch IPS panel 1080P HD Rearview vehicle Monitor

This 7"AHD monitor, with 3CH video input. 9 languages selectable for user operation With multiple viewing options.





7"Stand Alone AHD Monitor
SPECSModel No.EV-7010MAHD
Screen ratio16:9
Resolution1024*R.G.B*600 BOE
Backlight luminanceLED, Luminance  400 cd/m2
Contrast500:1
Frame rate1080P: P25f/s / N30f/s
Viewing angleUP—85°DOWN—85°LEFT—85°RIGHT—85°
Working temperature -20~+70 ºC
Working humidity 85%RH
Storage temperature -30~+85 ºC
Power supply DC12-24V
Boot time 2S
Current consumption TYPE: DC12V/500mA
OSD controlDisplay image, reversing delay, image mode, system settings
Power consumption <4W
Signal input

3CH AHD 1080P / 720P / CVBS input,2CH audio input,

compatible with CVBS and AHD signals, compatible with PAL and NTSC systems

LanguageSimplified Chinese, Traditional Chinese, English (can add multiple languages)
Image display3CH single image display
Trigger3CH trigger control, could set reversing delay
SystemPAL/NTSC automatically
Shockproof level4G
Speaker output consumption32*2W
Size180mm*121mm*24mm
