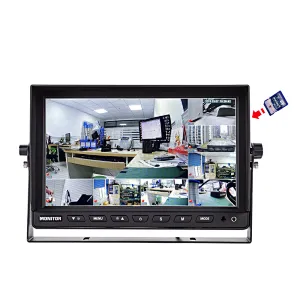

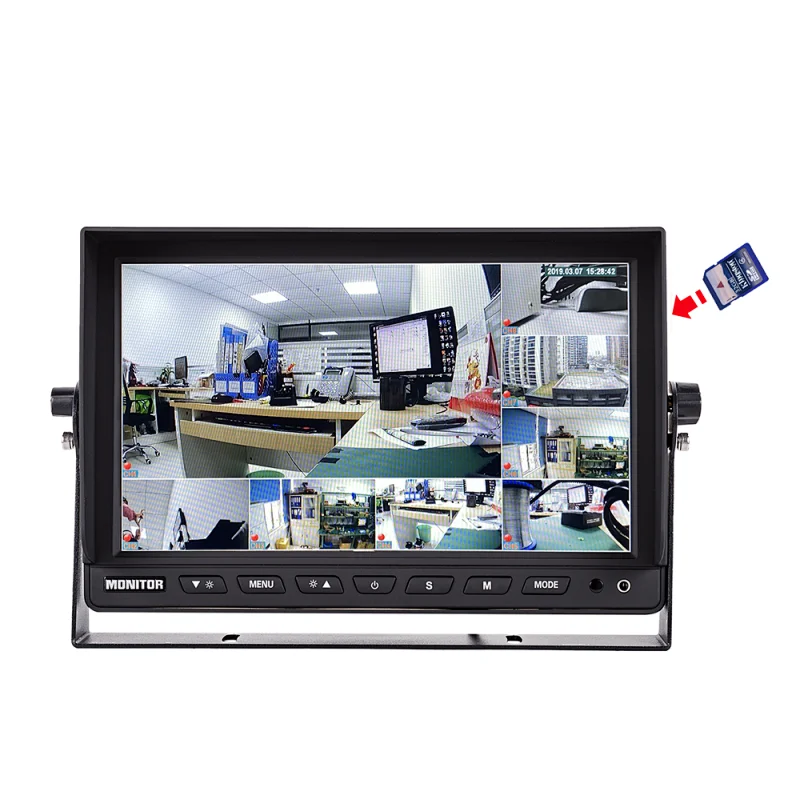

10.1 inch HD LCD car monitor
10.1 inch HD LCD car monitor

10.1 inch HD LCD car monitor

Model NO.
EV-1010MHQ-D
Delivery:
FOB
Quantity:
  • Min. Order:1

10.1"8CH AHD Monitor Built-in DVR
SPECS: Model No.:EV-1010MHQ-DVR
Screen ratio:16:9
Resolution: 1024*R.G.B*600 BOE
System: PAL/NTSC automatically
Backlight luminance: LED, Luminance 400 cd/m2
Contrast: 500:1
Frame rate: 1080P: P25f/s / N30f/s
Viewing angle: UP—85°,DOWN—85°,LEFT—85°,RIGHT—85°
OSD control: Recording playback,recording setting, display setting, system setting
Signal input: 8CH 1080P /960P/ 720P /960H/ D1(CVBS) input, 1CH audio input, compatible with CVBS and AHD signals,compatible with PAL and NTSC systems
Recording function: Support
SD card storage: Support 2-256G
Recording resolution: 1920*1080
Recording playback: 4CH/8CH at the same time, or single channel playback
Trigger control: 6CH trigger control, with parking guide line
Power supply: DC12-24V
Working temperature: -20~+70 ºC
Storage temperature: -30~+85 ºC
