car reverse camera

Long Distance Infrared night vision waterproof reverse camera

EV-103AH
minimum order
20 pieces
Supply Ability
3000pieces / Month
Country of Origin
Shenzhen
Stock Time
5 days after paymentDay
Quantity:
US $15.00 - US $16.00 / pieces
Contact Now
add to cart
  • Place of Origin:CN;GUA
  • Technology:Infrared
  • Model Number:EV-103AH
  • Brand Name:EVERVOX /OEM
  • Type:Analog Camera
  • Special Features:Waterproof / Weatherproof
  • Sensor:CCD
  • Style:Box Camera
Product Description



Specifications

Model number: EV-103AH

Image Sensor

CMOS 1/4”

Resolution

1280*720(100w)

Illuminance

0.1Lux, Infrared night vision

Viewing Angle

120°

IR-CUT

Change to black and white image automatically at the night


Mirror or Non- Mirror optional

System

PAL/NTSC optional

Working voltage

DC 12V or 24V optional

Waterproof level

IP67/68

S/N ratio

>48db

Appearance & Application

Aluminum alloy material shell, outside hanging design;suitable for bus ,trucks and special vehicles

Shockproof  Level

4G

Power Consumptions

∠3W

Connector

4PIN or RCA or BNC optional

Working Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Maximum Current

∠250 mA

Standard Accessories

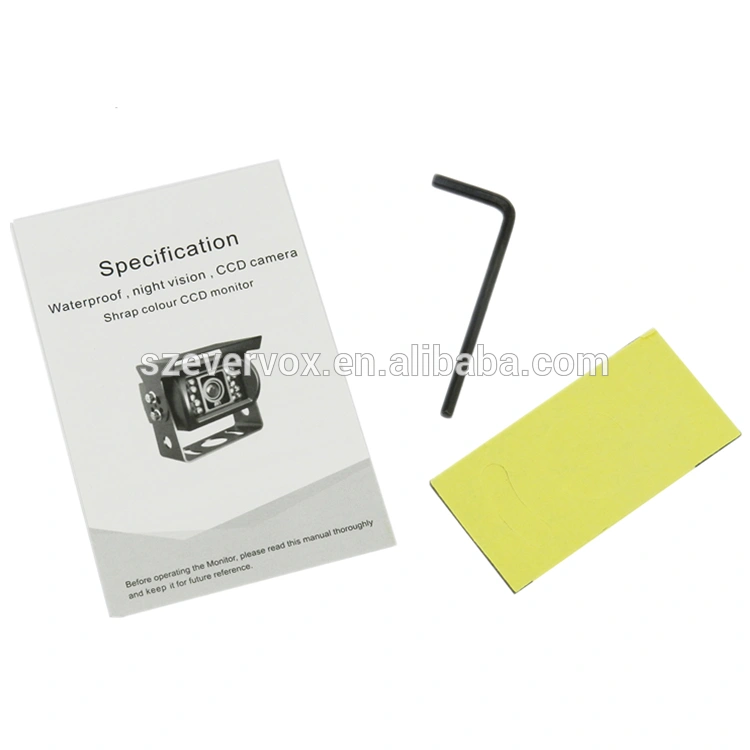

Hexagon screws, hexagon wrench, sunshade, bracket, user manual



Detailed Images

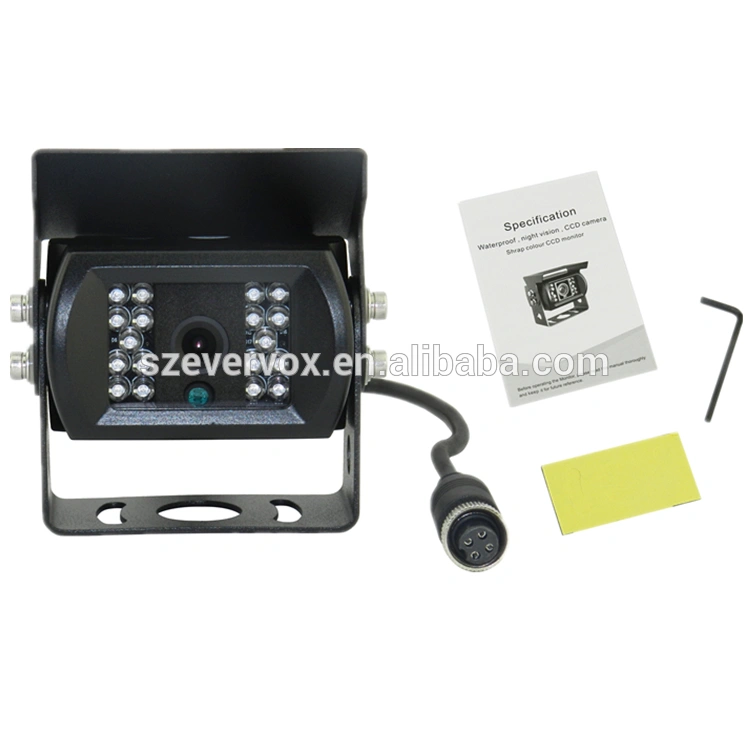

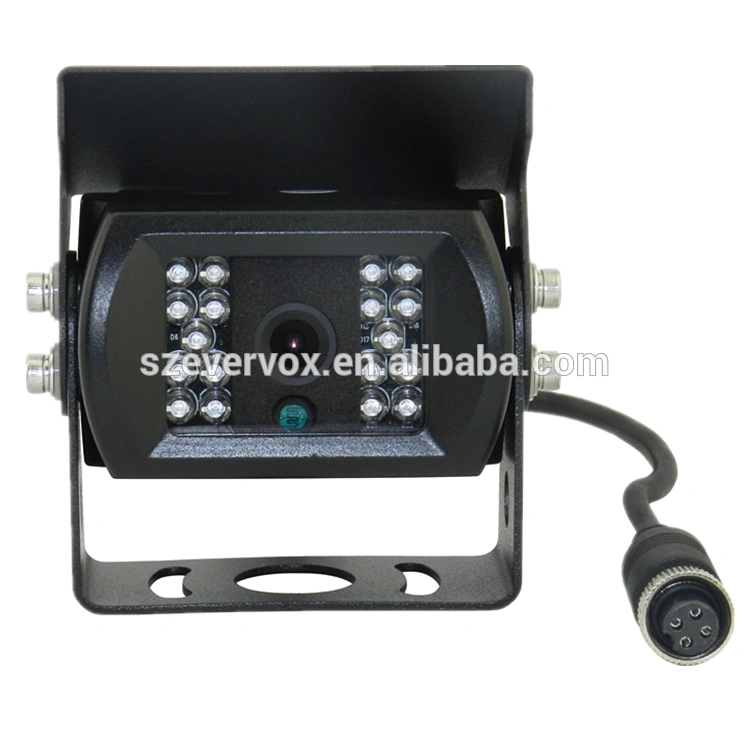

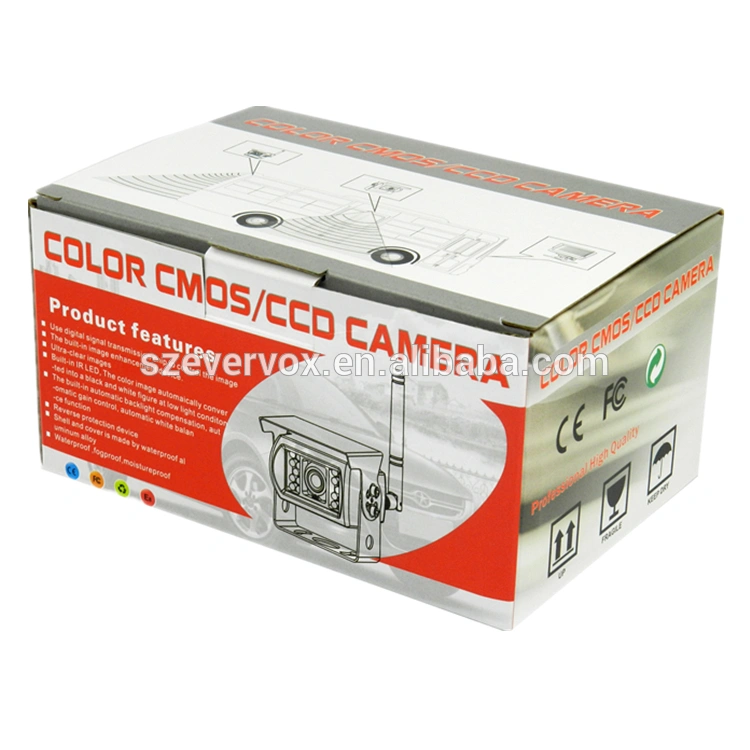

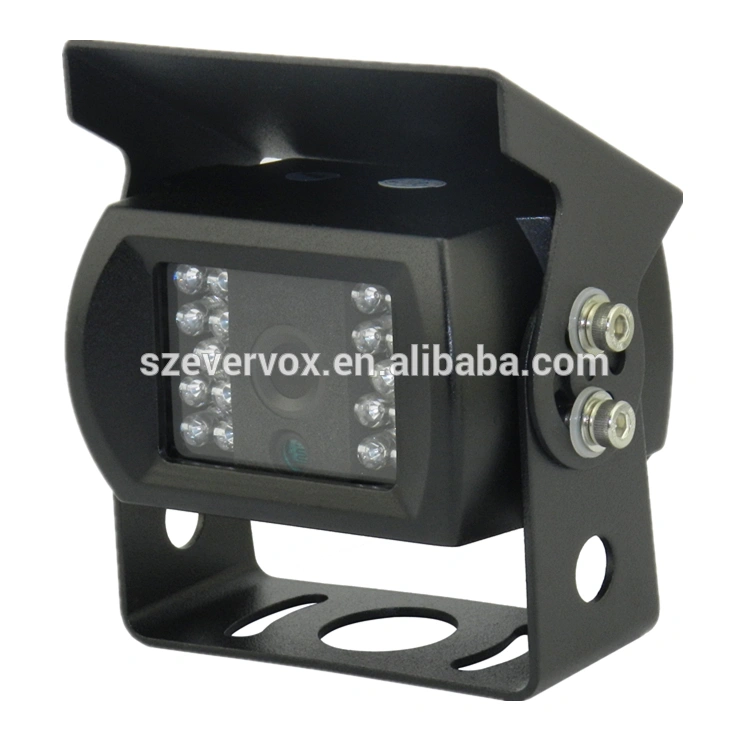

 EV-103A FrontEV-103A SIDEEV-103A accessoriesEV-103A with accessoryEV-103A GIFTBOX
