7'' car monitor Quad Vehicle Reversing TFT-LCD Monitor for bus/truck/lorry/van
- Place of Origin:CN;GUA
- Placement:Dashboard
- Screen Size:7"
- Brand Name:Neutral or your brand
- Certification:CE,FCC,ROHS, EMARK, ISO9001
- Screen Type:16:9
- Warranty:1 Years
- Car Make: ALL
- Model Number:EV-7017MQ
- Combination:SPEAKER, touch button
7 inch stand alone quad monitor
Specifications | Model number: EV-7017MQ |
Screen Ratio | 16:9 |
Back Light Luminance | LED, 300cd/m2 |
Resolution | 800xRGBx480 |
Compatible system | NTSC & PAL (automatically) |
OSD control | Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
View angle | Hor. L(60) R(60) Ver. UP(40) DOWN(60) |
Image reversion | UP/Down and Left/Right |
Power requirement | DC12-24V |
Power consumption | 5W |
Storage temperature | -30 to 80 degree |
Working temperature | -20 to 70 degree |
Size | 180x132x74 mm |
Weight | 356g |
Key color | Black |
AV Inputs | 4 way video input, 1 way audio input |
Number of Trigger and display | 4 triggers |
Optional functions | Built-in speaker, 4 PIN connector suitable |
Accessories | Remote controller, Power supply cable , User manual, Bracket |
Package | 10pcs/box net weight:8.8KGS gross weight:9.6KGS M:54.7*36*21.6cm |

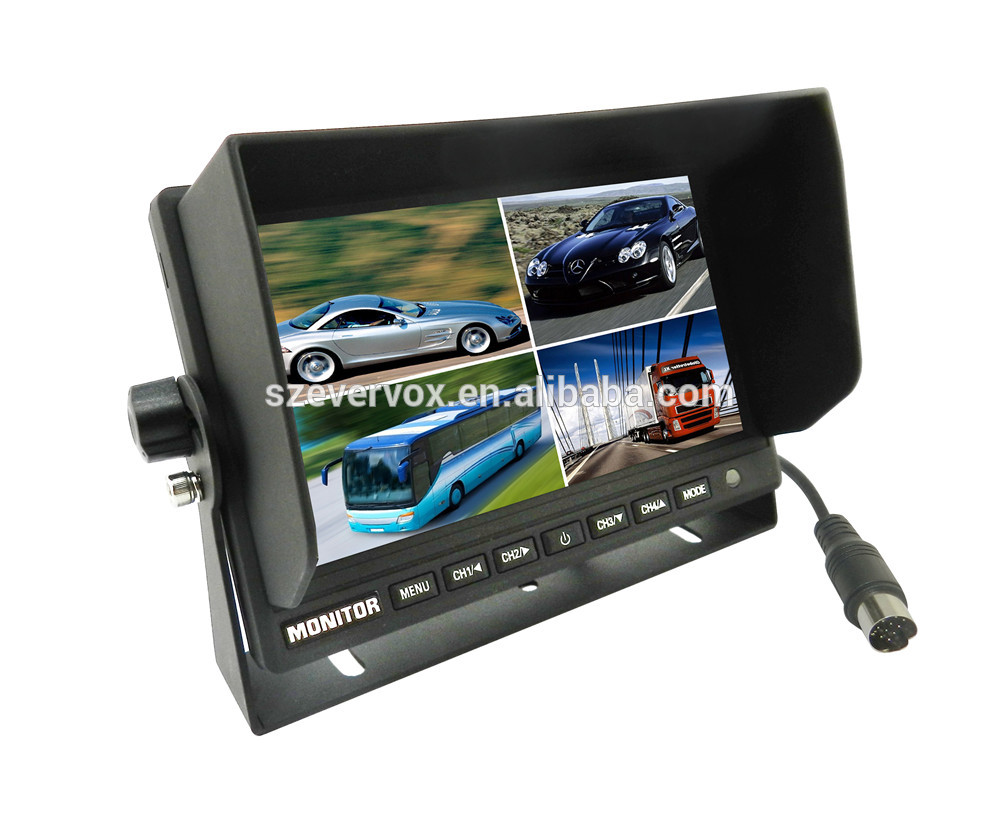

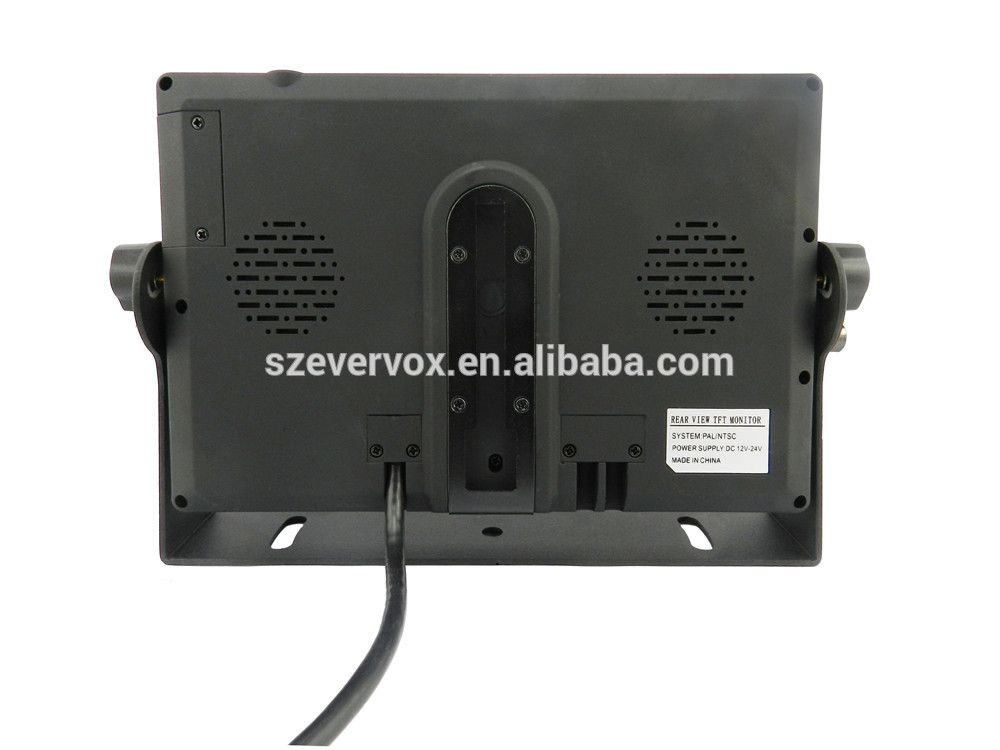

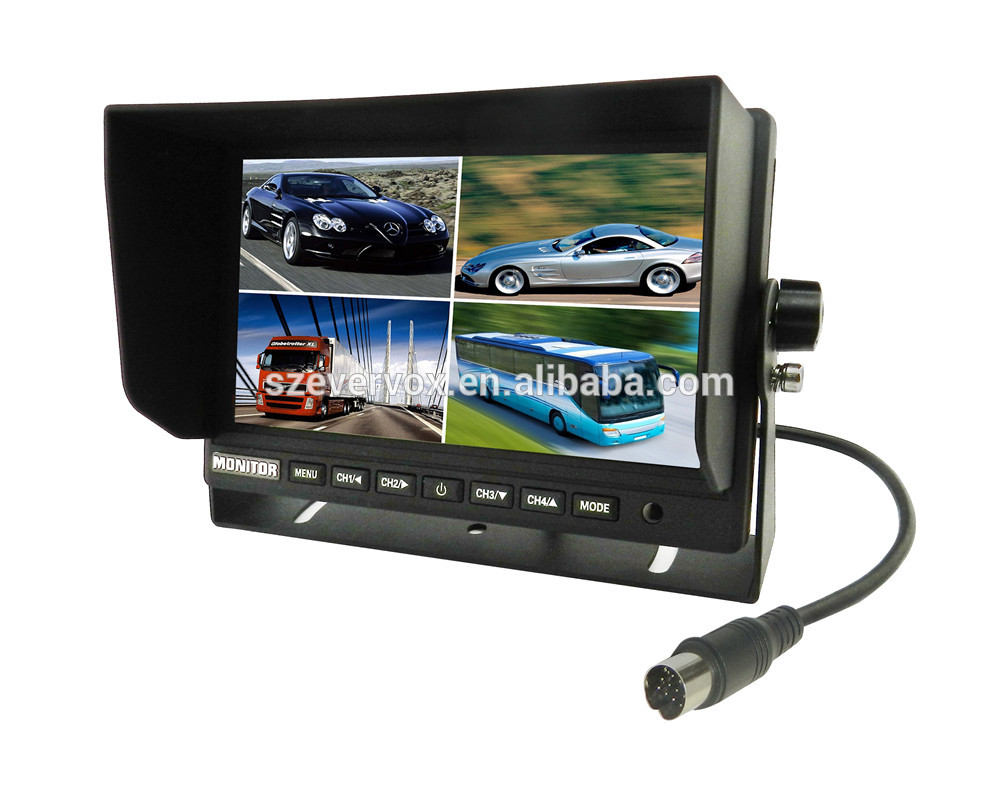

Product Image

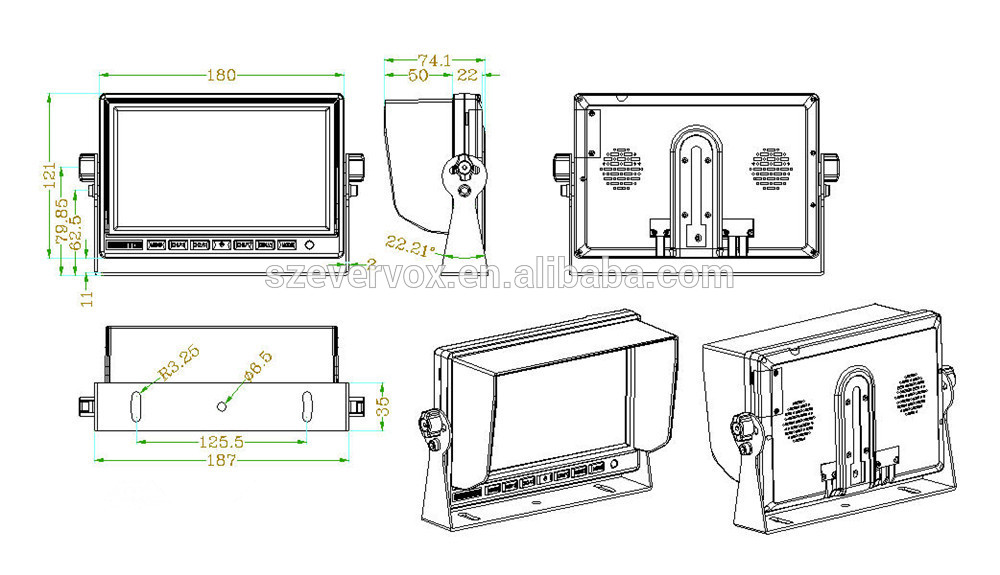

Outline Dimension Drawing

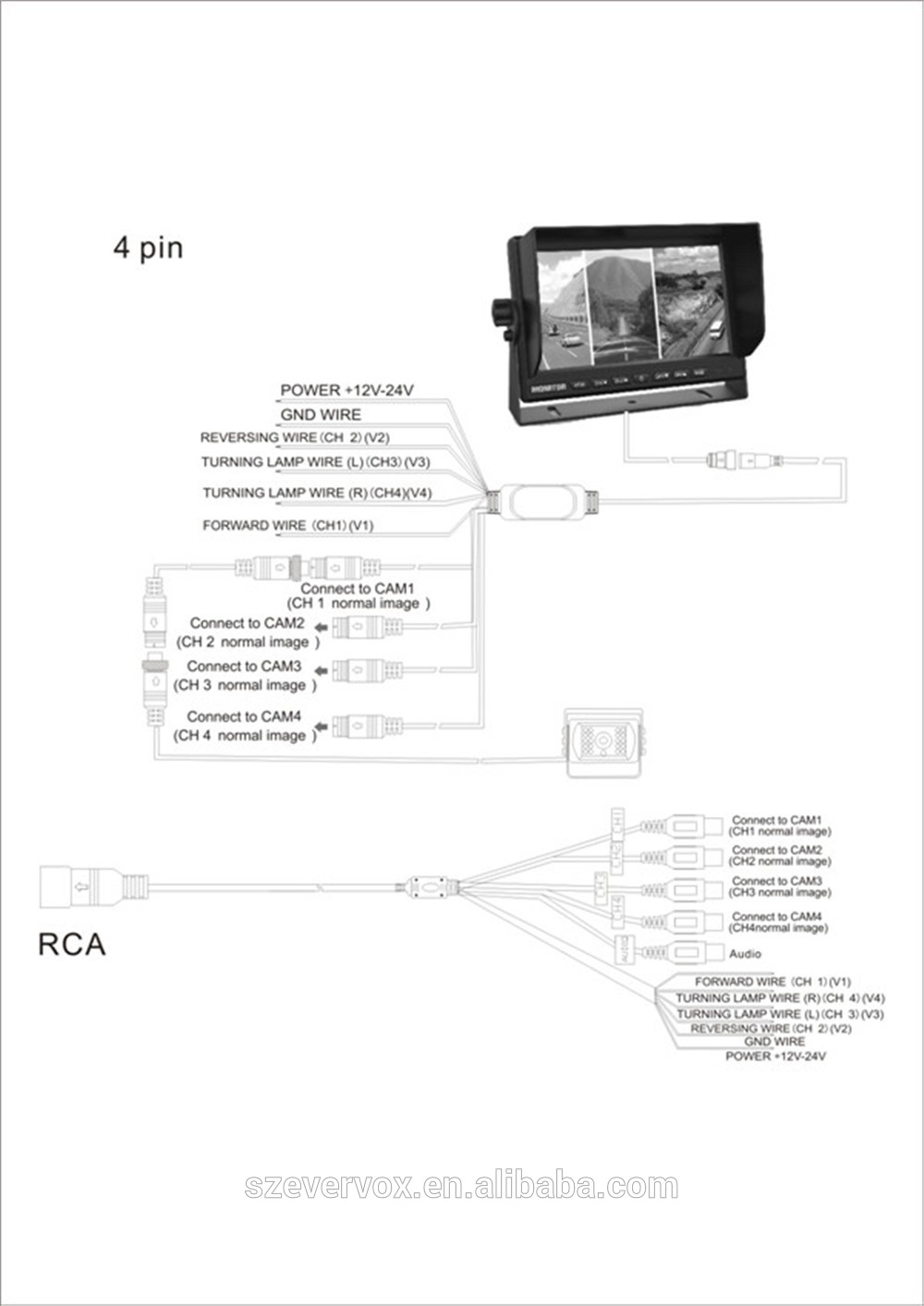

Cable Connection

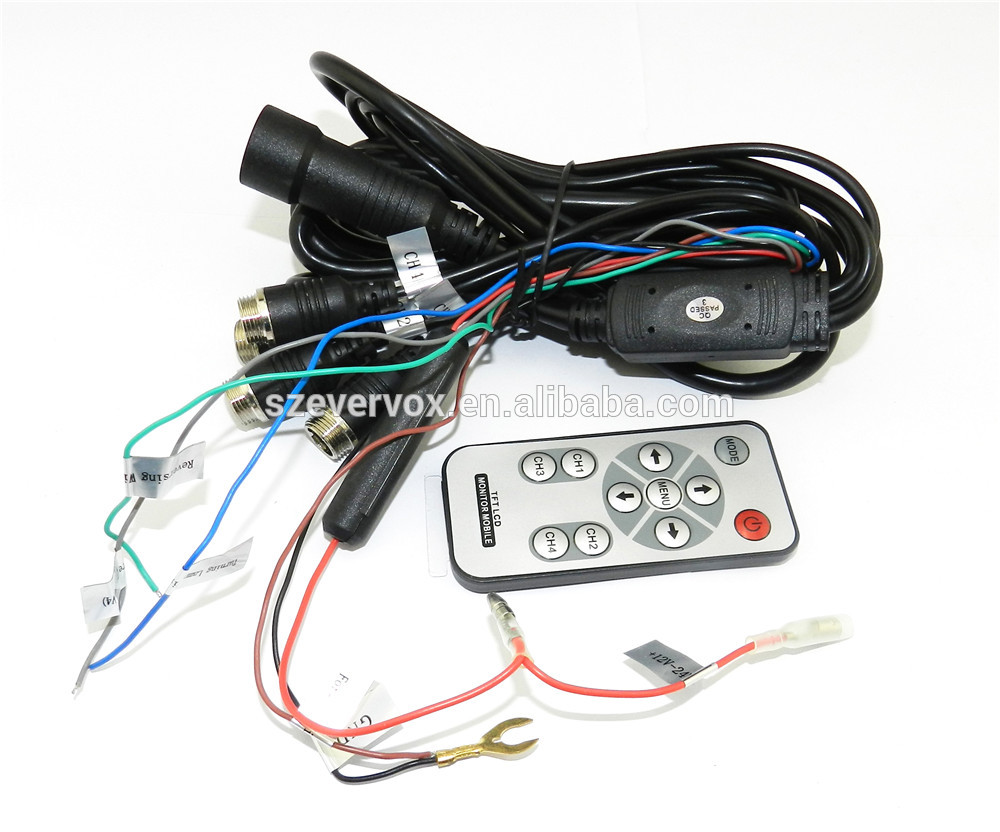

Accessories
Company Introductions
