Bus Tractor Van Trailer 7 Inch TFT HD Stand Alone Car Lcd Monitor
- Place of Origin:CN;GUA
- Placement:Dashboard
- Screen Size:7"
- Brand Name:Neutral or your brand
- Certification:CE,FCC,ROHS, EMARK, ISO9001
- Screen Type:16:9
- Warranty:1 Years
- Car Make: ALL
- Model Number:EV-7017M
- Combination:SPEAKER, touch button
7 inch standard alone monitor
Specifications | Model number: EV-7017M |
Screen Ratio | 16:9 |
Back Light Luminance | LED, 300cd/m2 |
Resolution | 800xRGBx480 |
Compatible system | NTSC & PAL (automatically) |
OSD control | Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
View angle | Hor. L(60) R(60) Ver. UP(40) DOWN(60) |
Image reversion | UP/Down and Left/Right |
Power requirement | DC 12-24V |
Power consumption | 5W |
Storage temperature | -30 to 80 degree |
Working temperature | -20 to 70 degree |
Size | 180x132x74 mm |
Weight | 312g |
Key color | Black |
AV Inputs | 2 way video input, built-in speaker |
Number of Trigger and display | 1 trigger |
Optional functions | 4 PIN connector |
Other features | OSD menu, Remoter control, Sunshade design around, Built-in speaker |
Accessories | Remote controller, Power supply cable , User manual, Bracket, Connector conversion line |
10pcs/box net weight:8.6KGS gross weight:9.4KGS M:54.7*36*21.6cm |

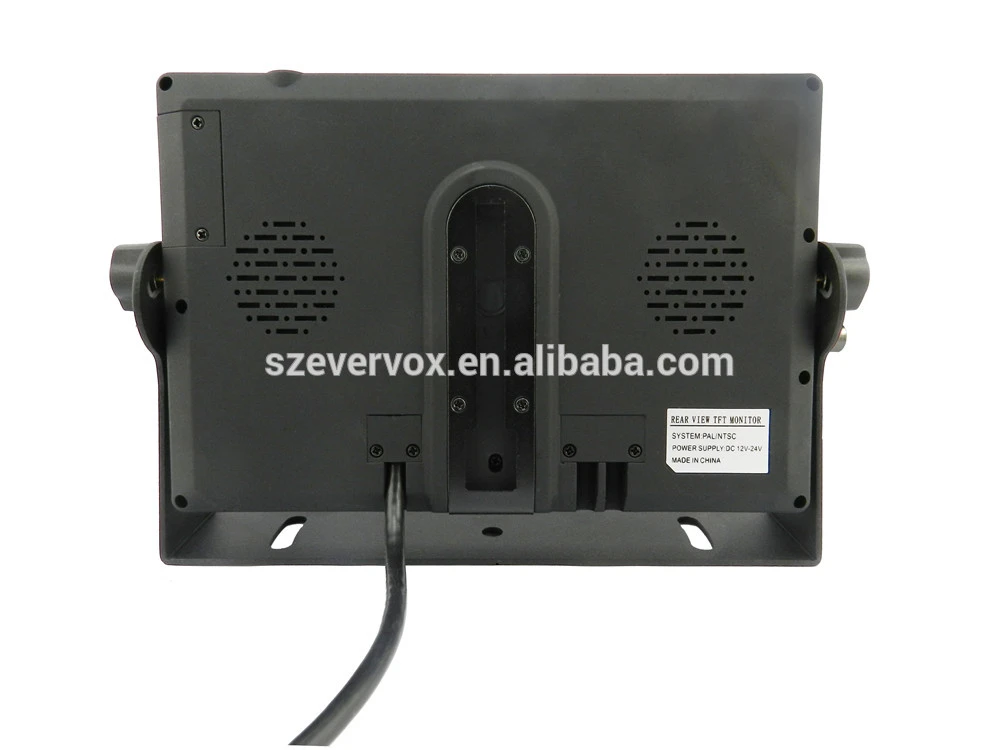

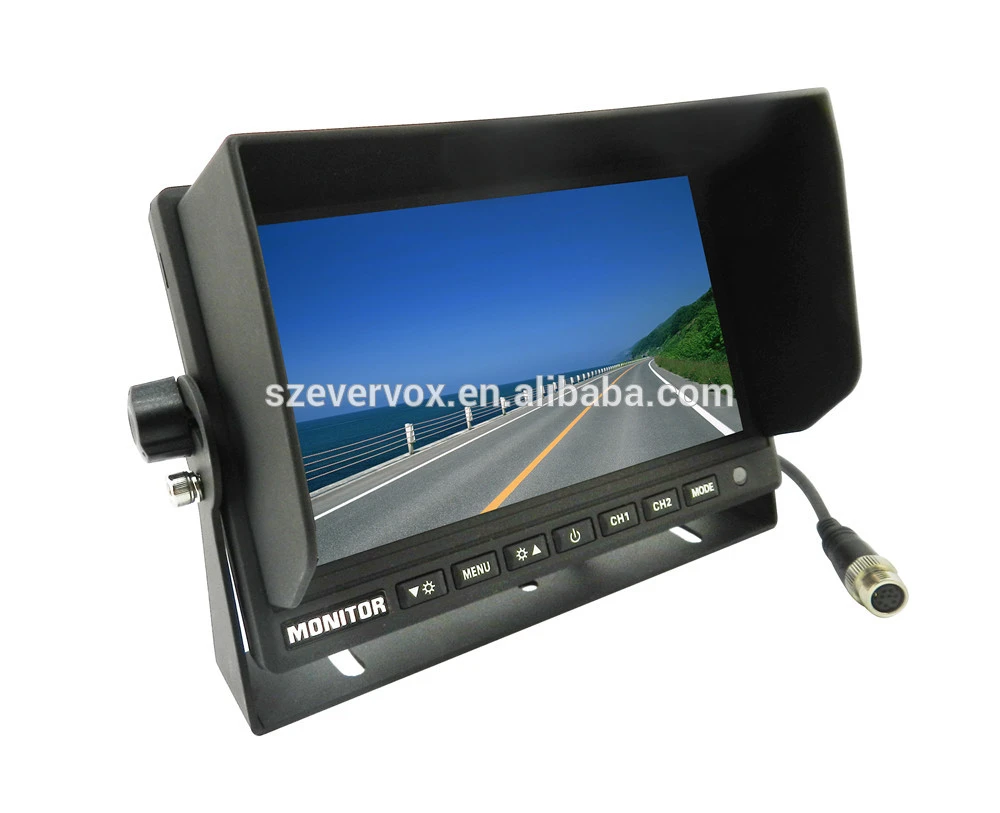

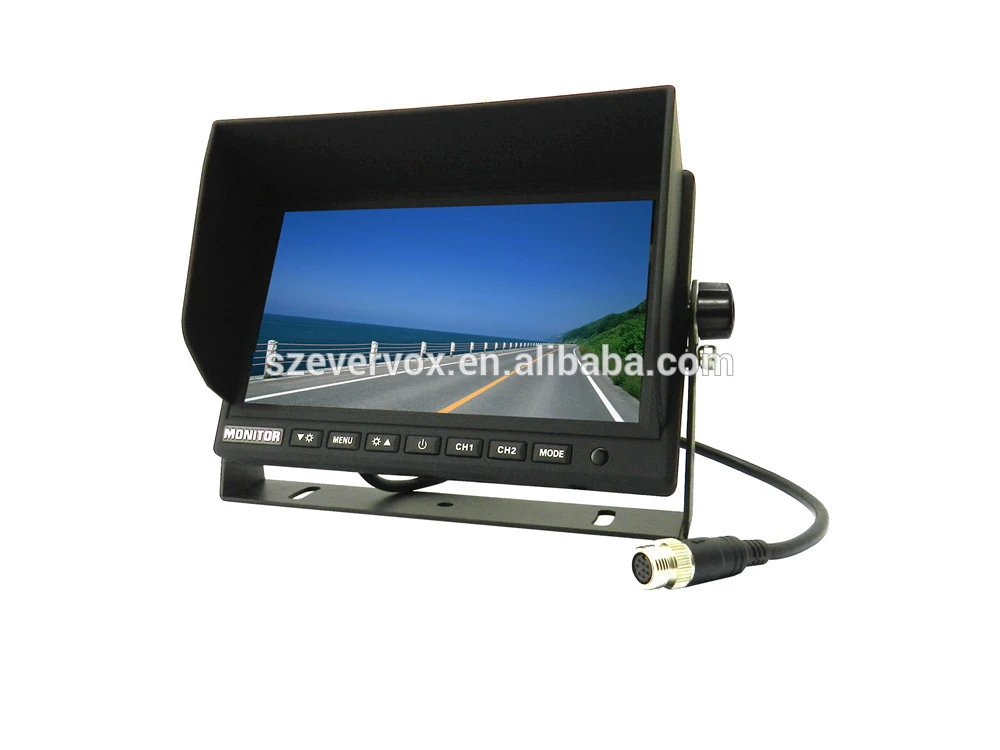

Product image

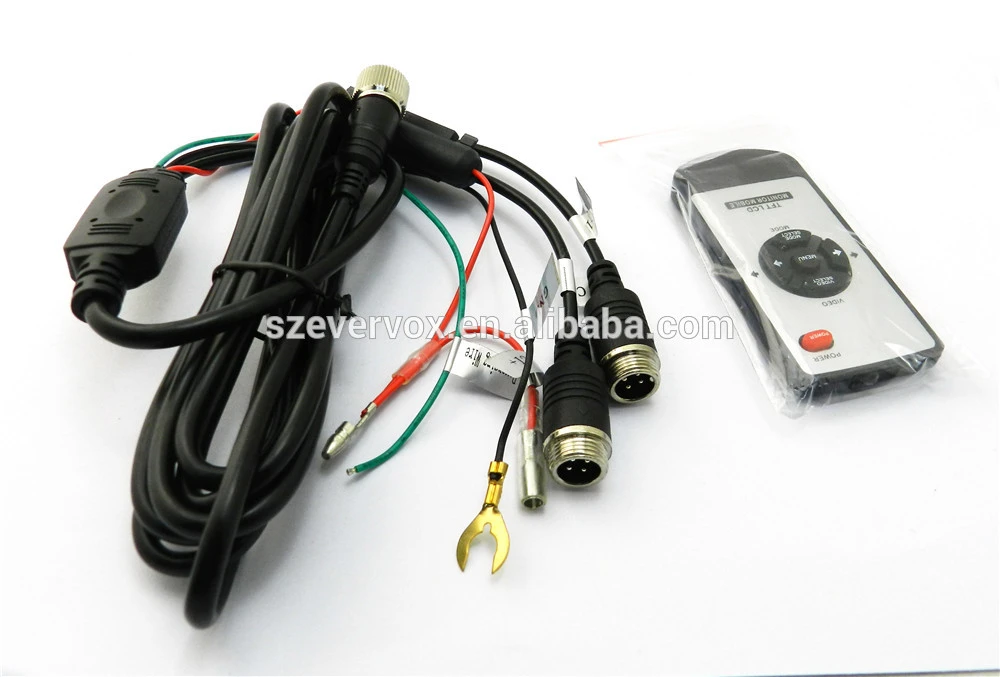

Accessories

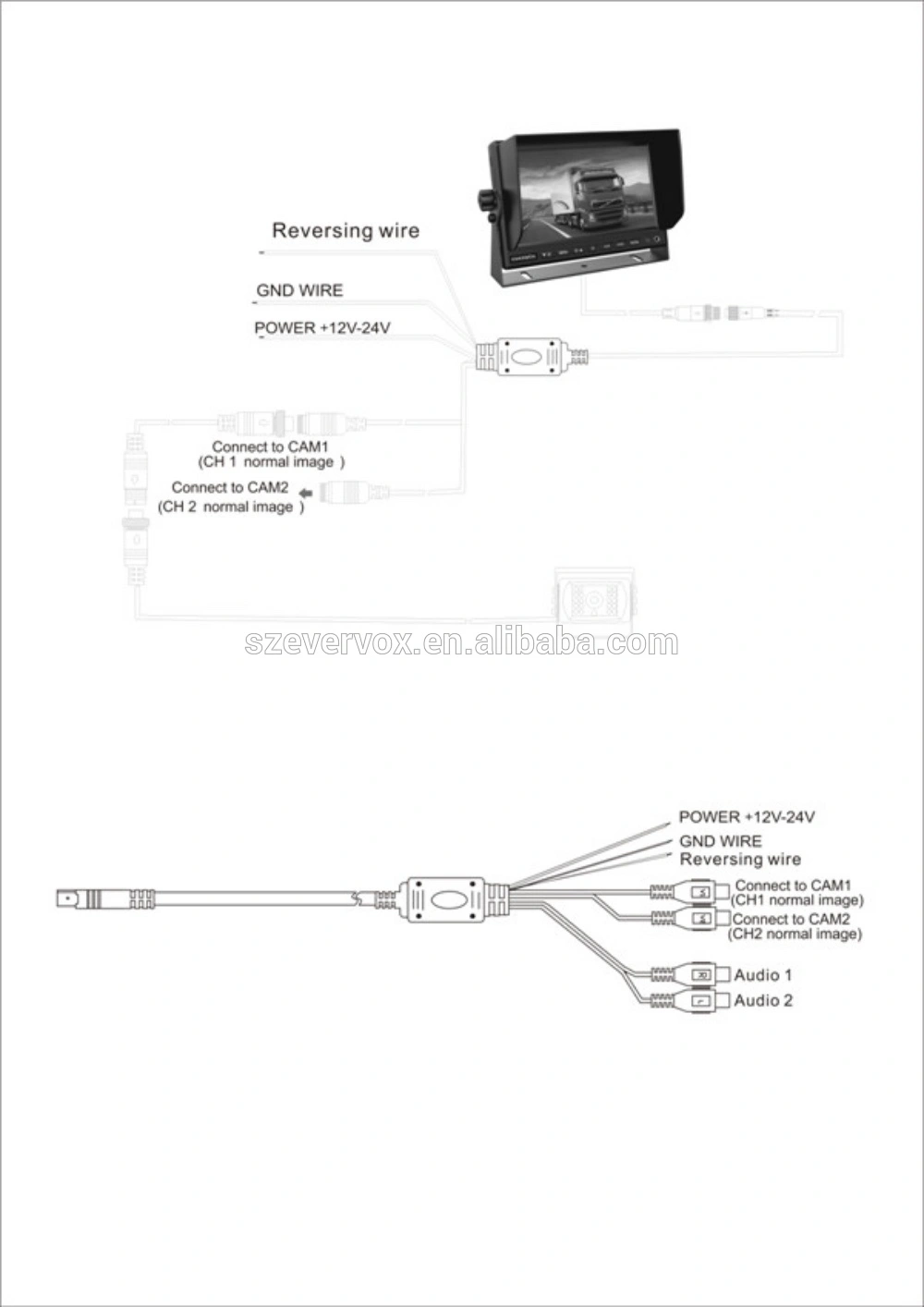

Cable Connection

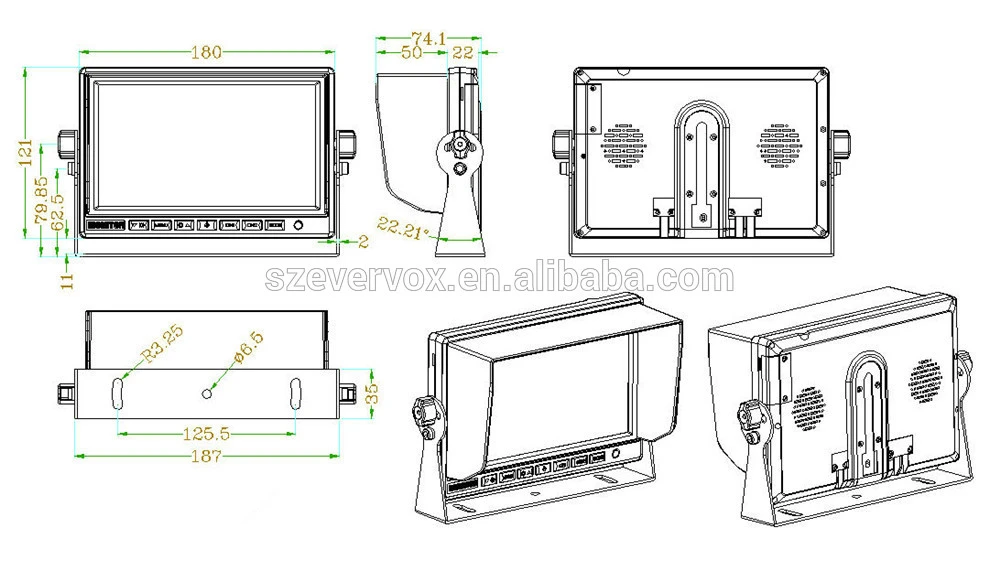

Outline Dimension Drawing
Company Introduction
