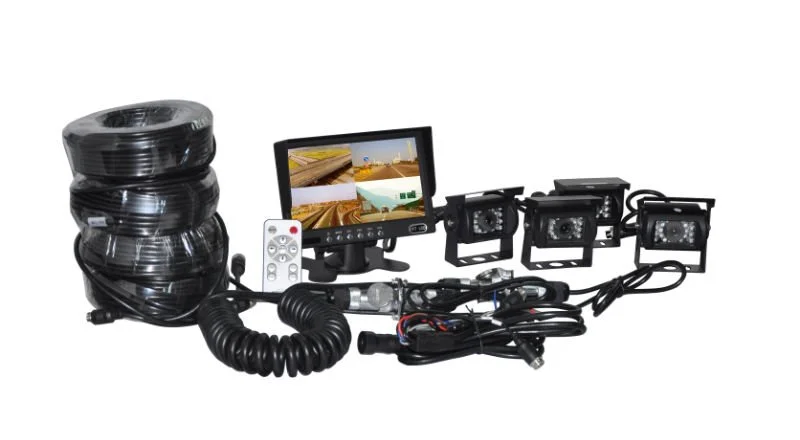

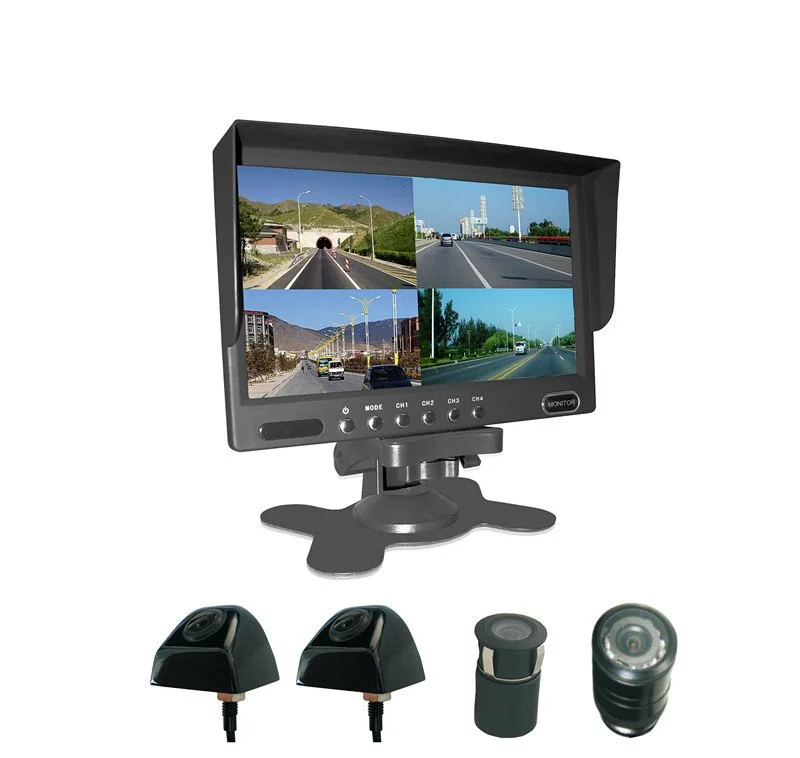

EVERVOX Hot Sale- 7 inch TFT LCD Rear View Quad System EV-7599MQS
- Screen Type:16:9
- Placement:Dashboard
- Combination:DVD Player
- Combination:MP3 / MP4 Players
- Combination:Radio Tuner
- Combination:TV
- Place of Origin:CN;GUA
- Certification:CE FCC ROHS
- Car Make:Universal
- Brand Name:OEM
- Model Number:EV-7599MQS
- Warranty:1 Years
Specifications

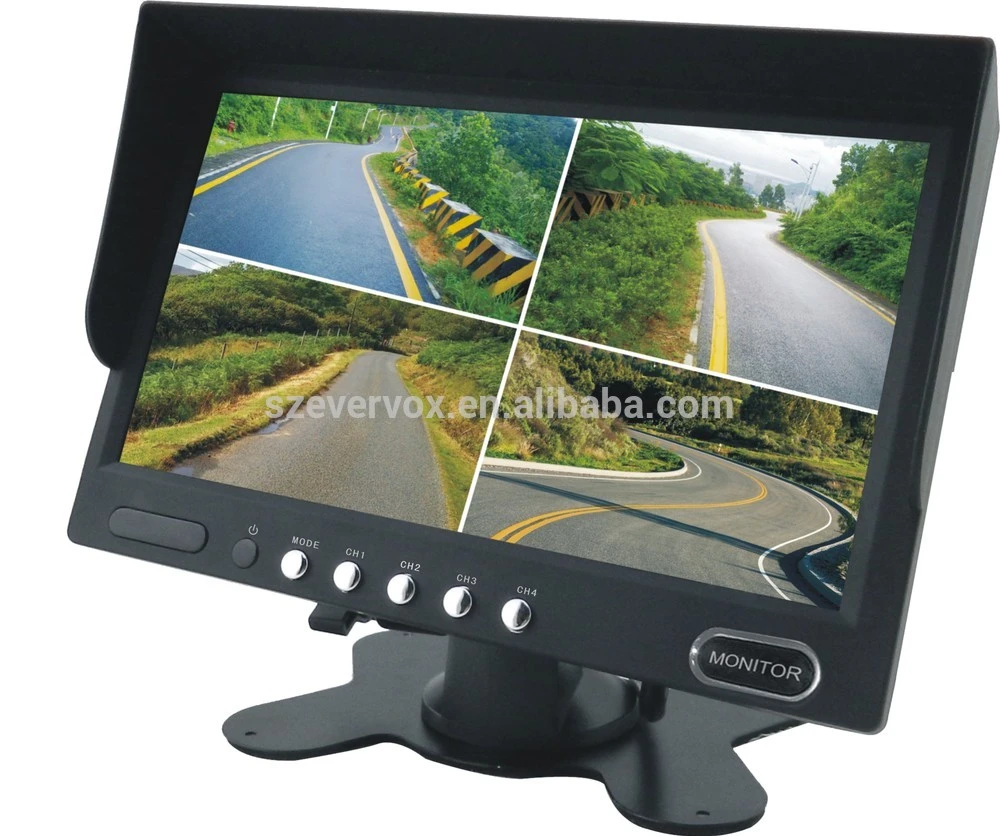

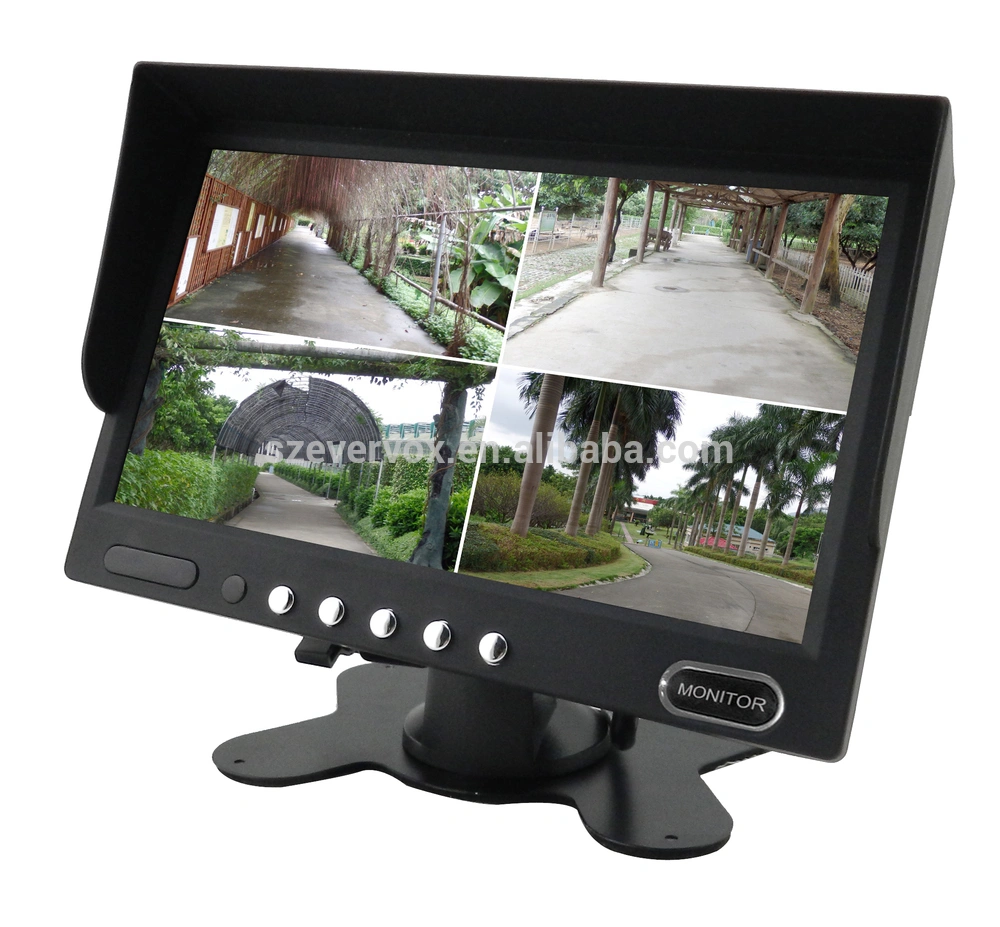

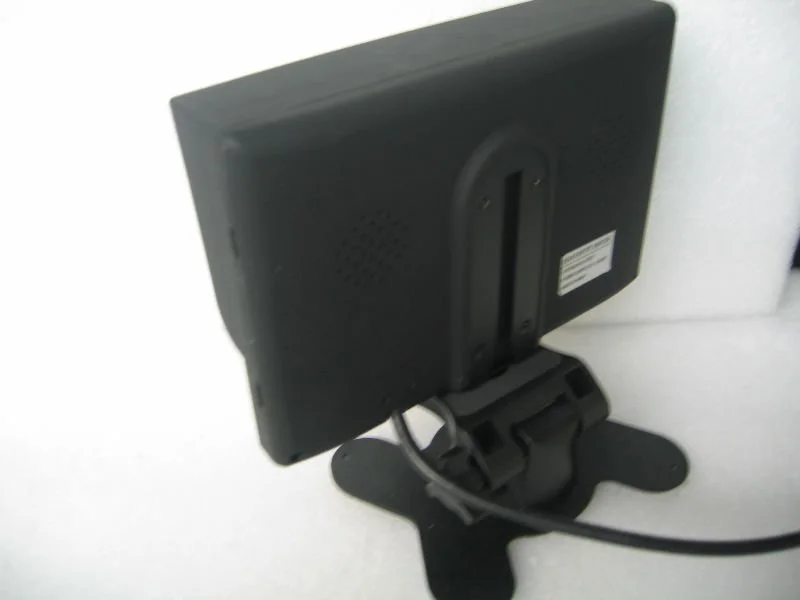

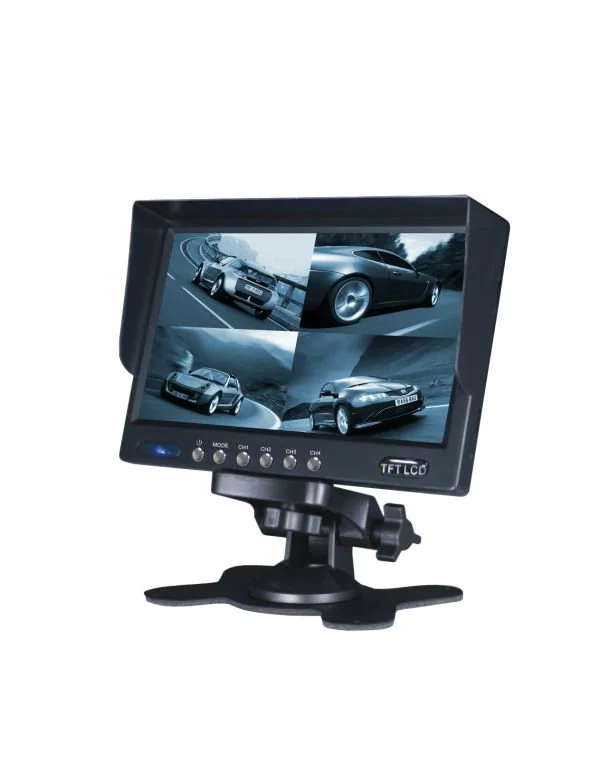

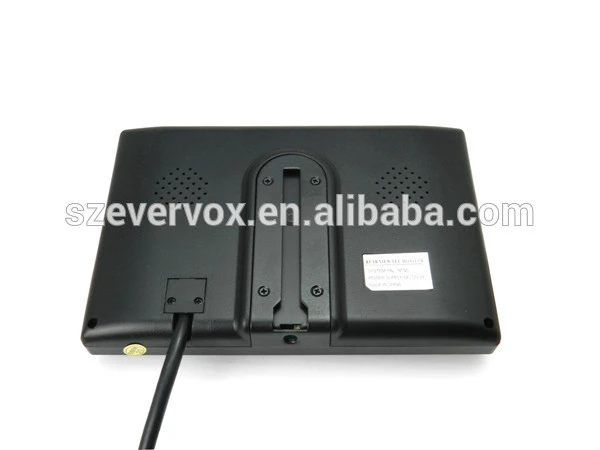

MONITOR Model No.: EV-7599MQ
Screen Ratio16:9
Back Light LuminanceLED, 300cd/㎡
Resolution800xRGBx480
Compatible systemNTSC & PAL (automatically)
OSD controlColor, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
View angleHor. L(60) R(60) Ver. UP(40) DOWN(60)
Image reversionUP/Down and Left/Right
Power requirement12V DC (12-24V DC optional)
Power consumption5W
Storage temperature-30〜80℃
Working temperature-20℃ to 70℃

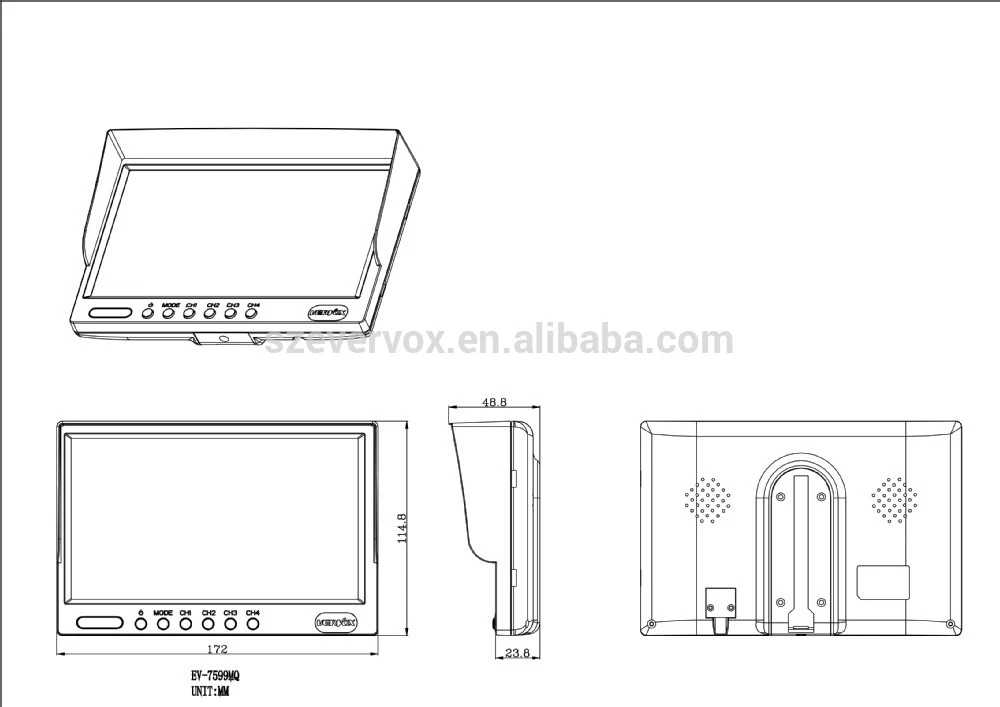

Size172x114.8x23.8 mm
Weight356g
Key colorSilvery color

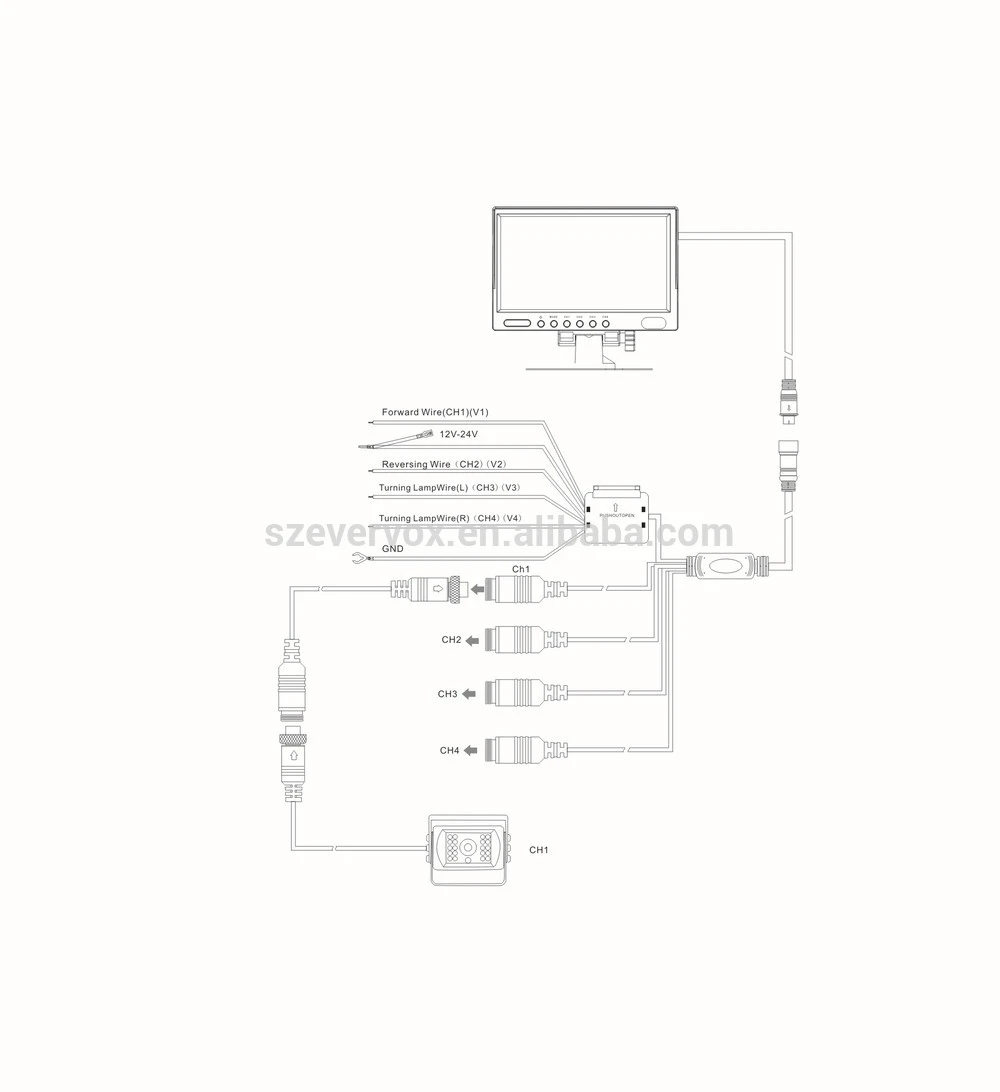

AV Inputs4 way video input, 1 way audio input
Number of Trigger and display4 triggers
Optional functionsBuilt-in speaker, 4 PIN connector suitable

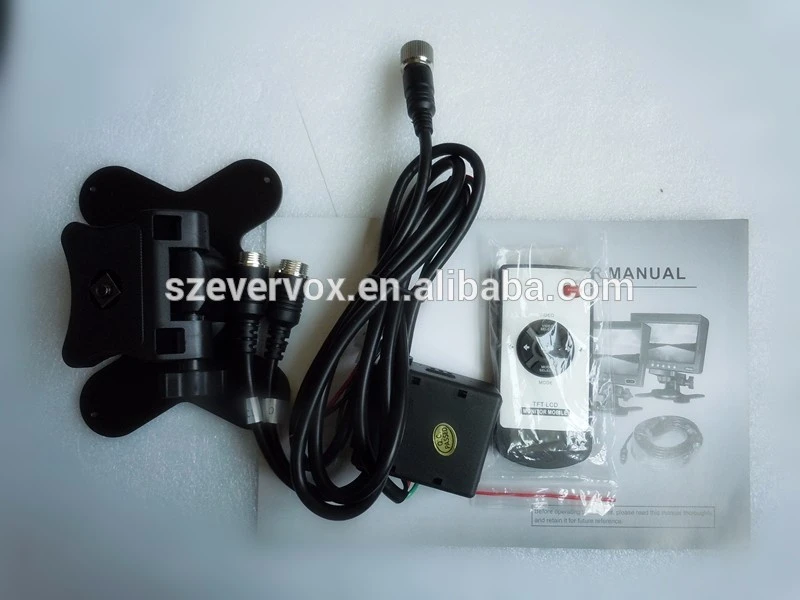

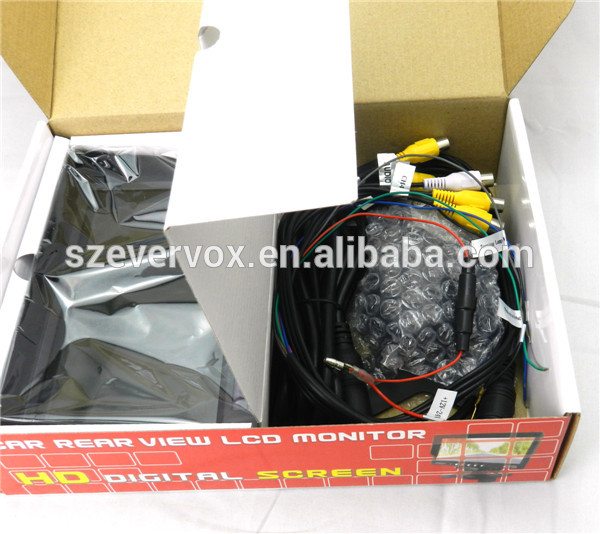

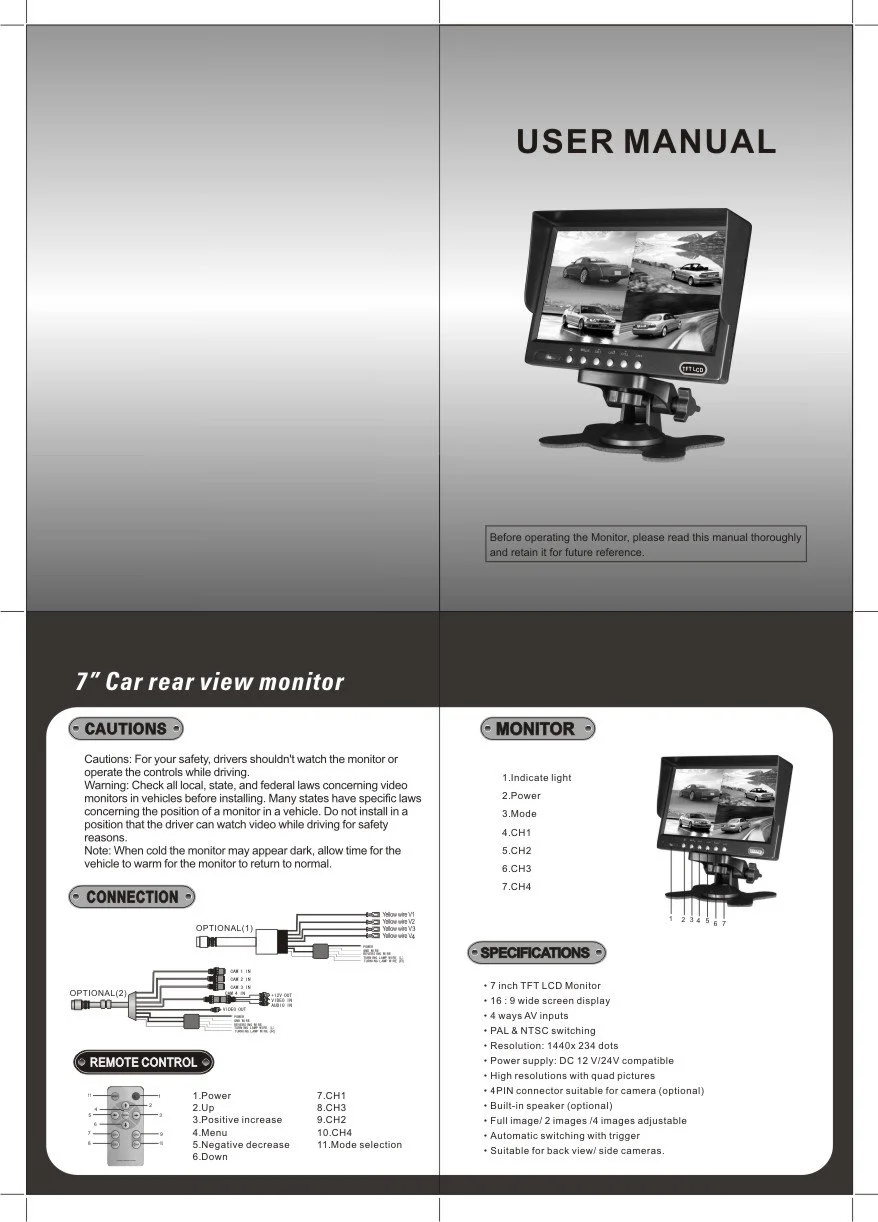

AccessoriesRemote controller, Power supply cable , User manual, Bracket

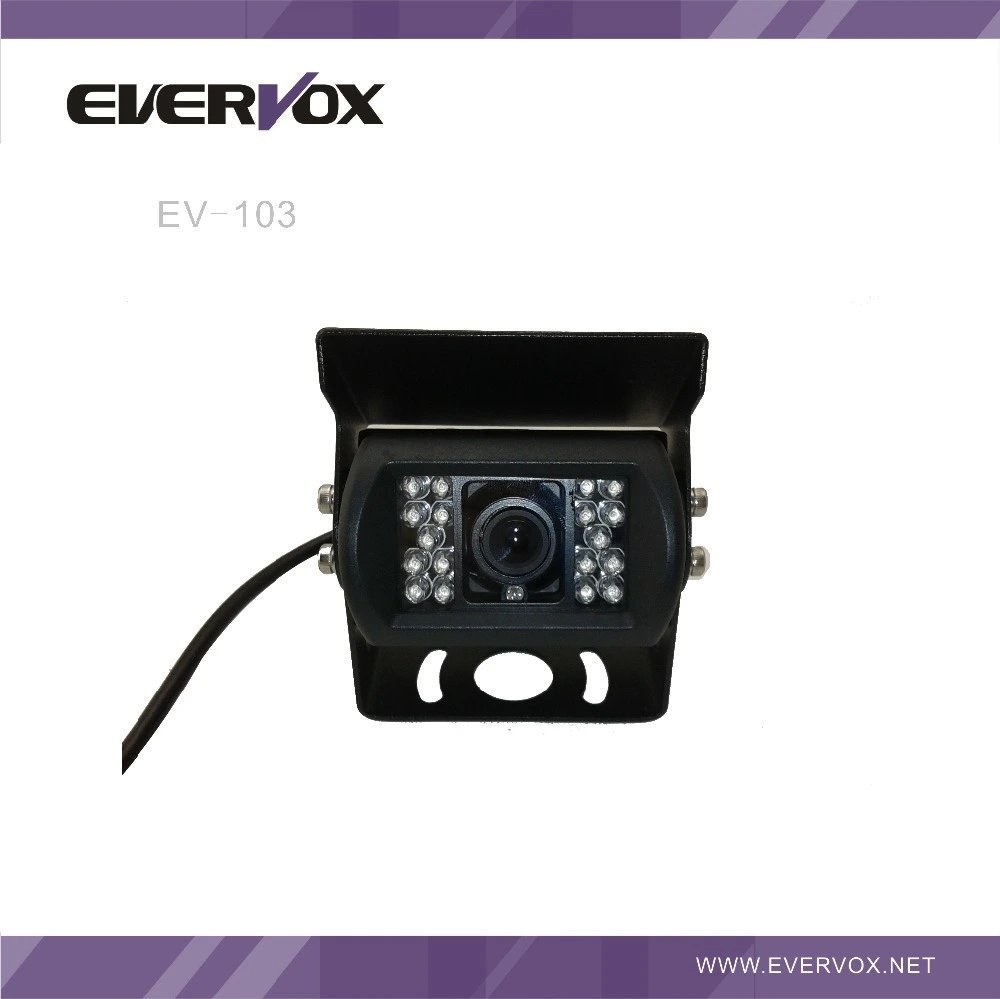

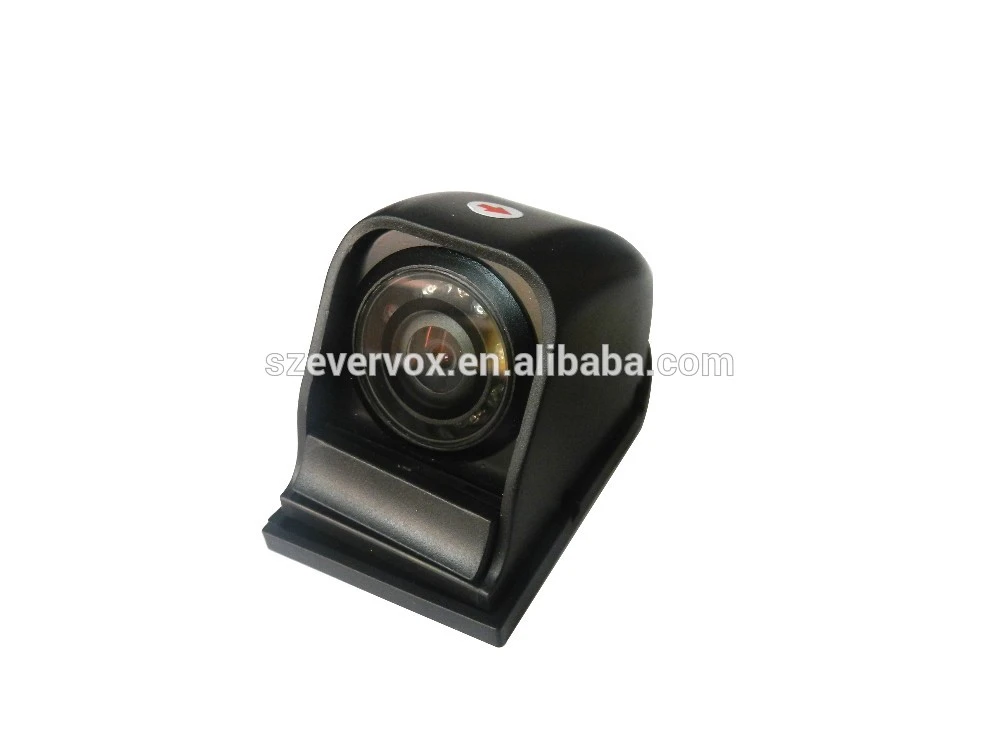

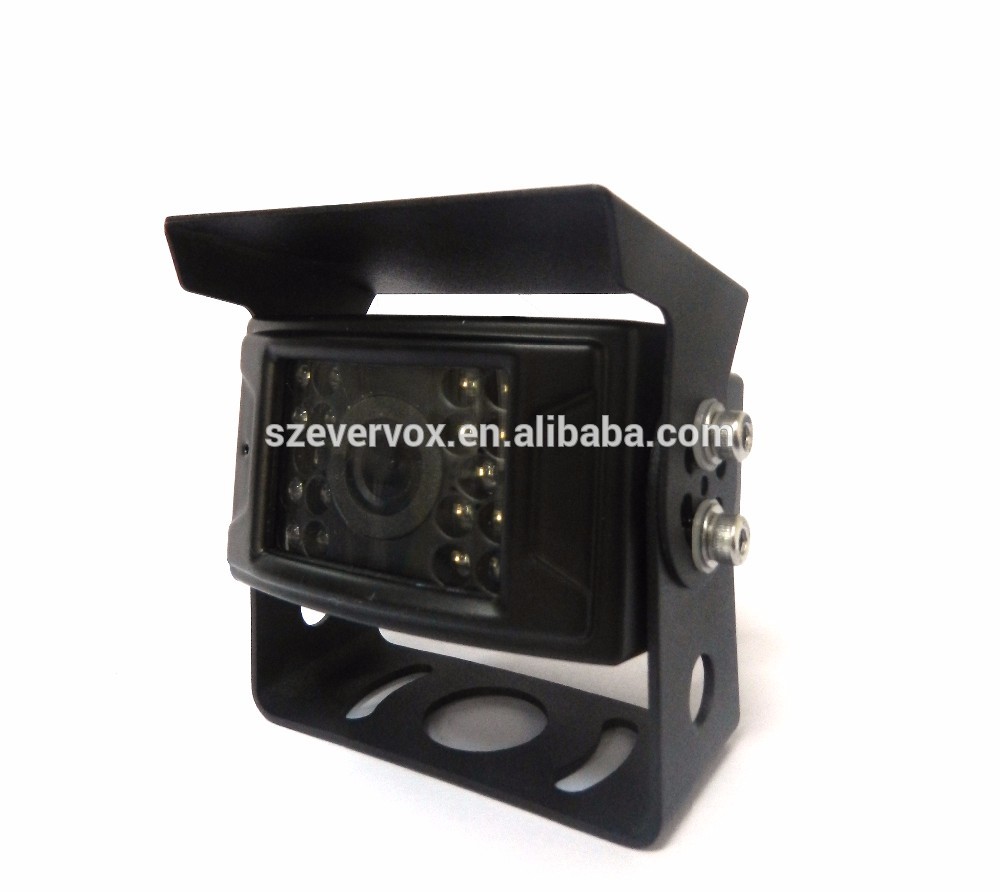

Specifications Model number: EV- 103C
Image sensorSony color ccd
Lens3.6 mm/ 2.8 mm (option)
Horizontal Resolution420TV line/ 600 TV line(optional)/700 TV line(optional)
Minimum illumination0.5Lux
Image angle120°
unit size76.8*54*76.8mm
Effective pixels: N:512(H)*492(V) P:512(H)*582(V)
SystemPAL/NTSC optional
Working voltage12 V /24 V optional
Waterproof levelIP68
S/N ratio＞48db
AppearanceAluminum alloy material shell, outside hanging design
Fits for Suitable for bus, trucks and special vehicles
AV inputsStandard AV signal inputs
Standard accessories0.6m power line
Other functionsWaterproof, Shockproof, Infrared night vision, Resistance to high temperature and humidity.
Function expansionAuto heating/ audio/ custom wire/ camera body custom etc.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
