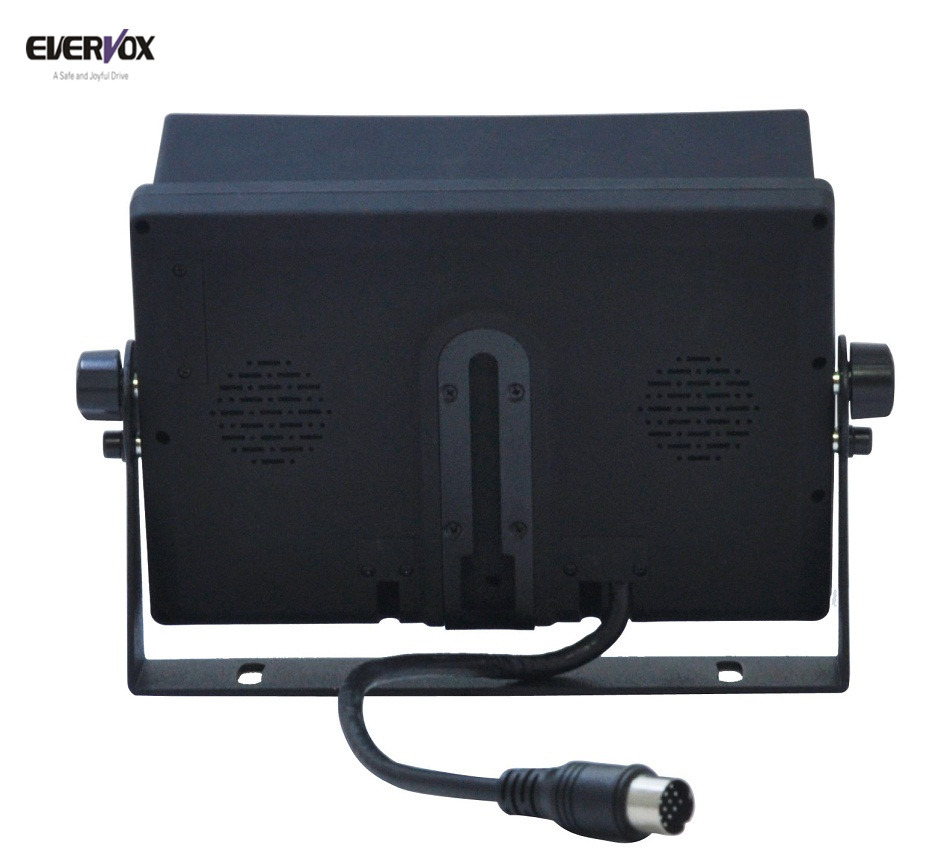

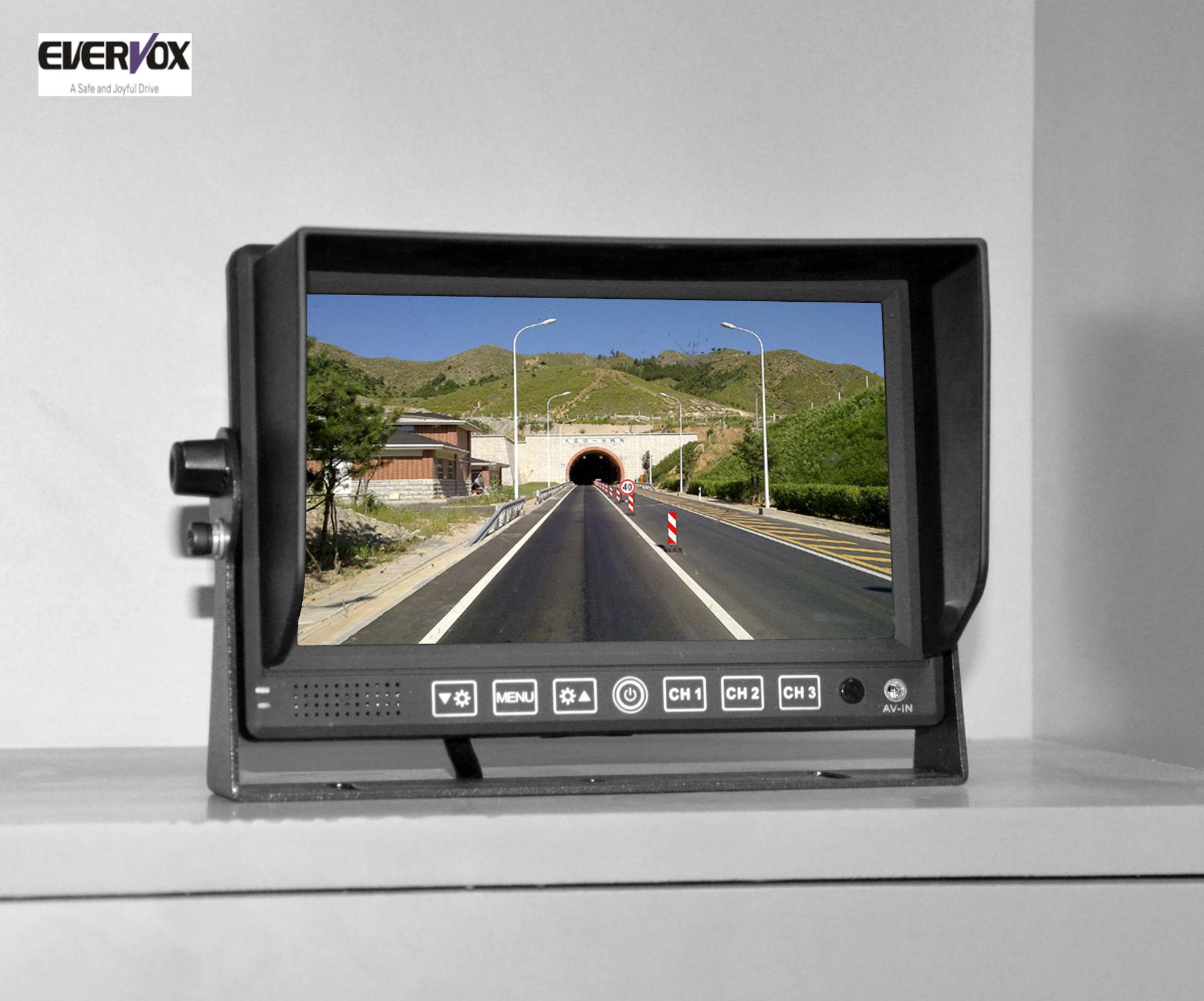

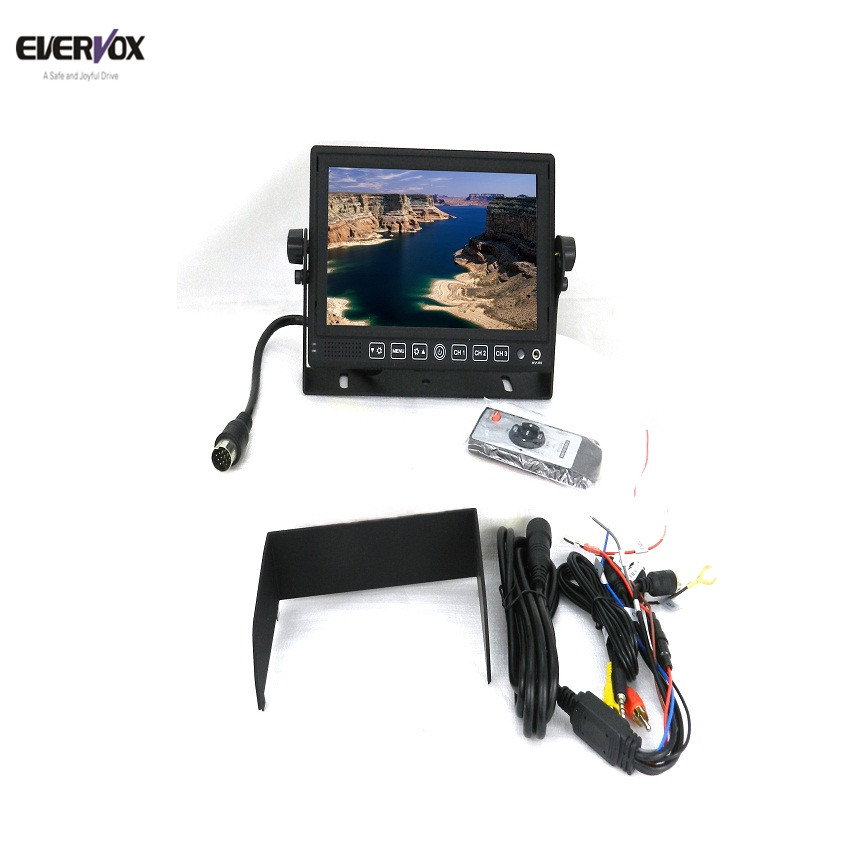

7 inch Digital screen 12V with 800 x 480 car reversing monitor
- Place of Origin:CN;GUA
- Screen Type:16:9
- Model Number:EV-7012
- Brand Name:EVERVOX / OEM
- Car Make:Universal
- Combination:TV
- Certification:CE FCC
- Placement:Dashboard
- Screen Size:7"
- Warranty:1 Years
Specifications | Model number: EV-7012M |
Screen Ratio | 16:9 |
Back Light Luminance | LED, 300cd/m2 |
Resolution | 800xRGBx480 |
Compatible system | NTSC & PAL (automatically) |
OSD control | Brightness, Contrast, Saturation, Volume, TCON, Language (English, Simplified Chinese), Reversing delay, Parking Guide Line, Wifi Channel setup |
Viewing angle | Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
Image reversion | UP/Down and Left/Right |
Power requirement | 12V DC (12-24V DC optional) |
Power consumption | 5W |
Storage temperature | -30~80 |
Working temperature | -20~70 |

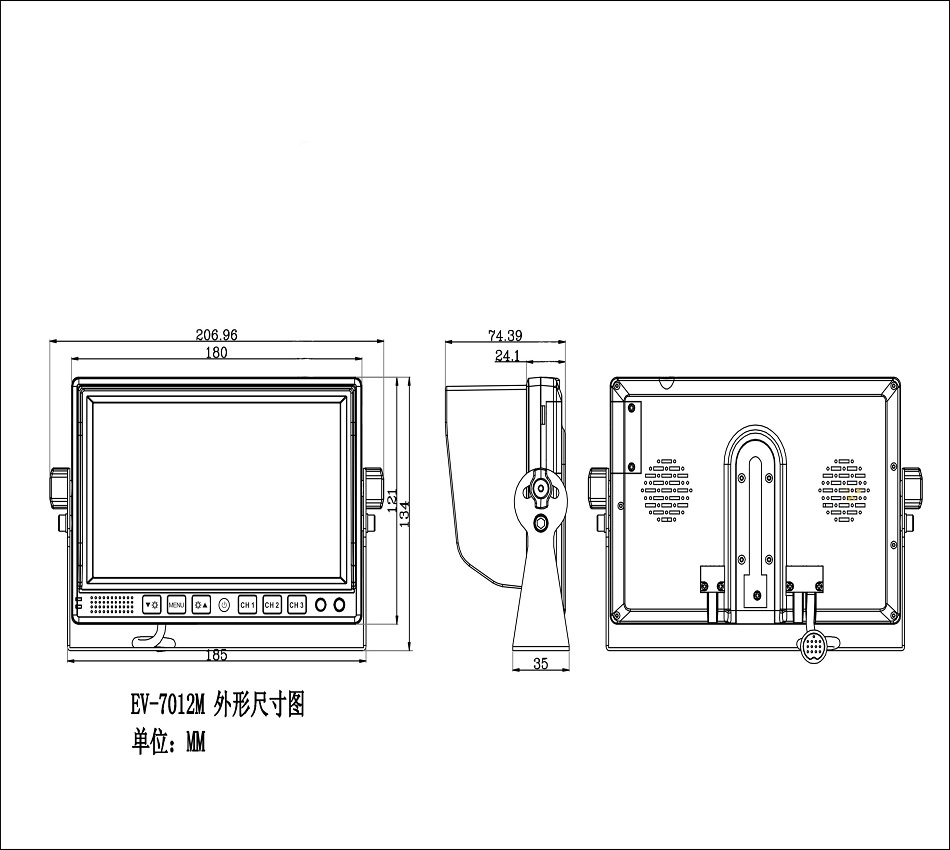

Size | 180x121x23 mm |
Weight | 543g |
Key color
| Black rubber oil, radium carving, through blue light |
Shockproof level | 4G |
Optional functions | 4 PIN connector, Butterfly style bracket |
AV Inputs | 3 way video input, 2 way audio input |
Number of Trigger and display | 3 triggers |
Transmission distance | 100M in open area |
Other features | Built-in speaker, with removable visor |
1. Help you solve technical problems.
2. Keep you inform about any updates.
3. Provide best service.
4. Guarantee the best quality.
5. Experienced R & D team to Support OEM Service and after-sale services.
6.100% test before shipment.
Here are the policy and procedures:
If there is anything wrong with device, we will provide technical support and help you to solve the issues on your side.
If the device is defected and faulty that you can not fix at all, pls send the faulty unit back to us, and provide tracking No.
Once we get returning units, we will send replacements to you immediately or refund!
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. we can make OEM as your request when the order is up to MOQ.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. Are you real factory?

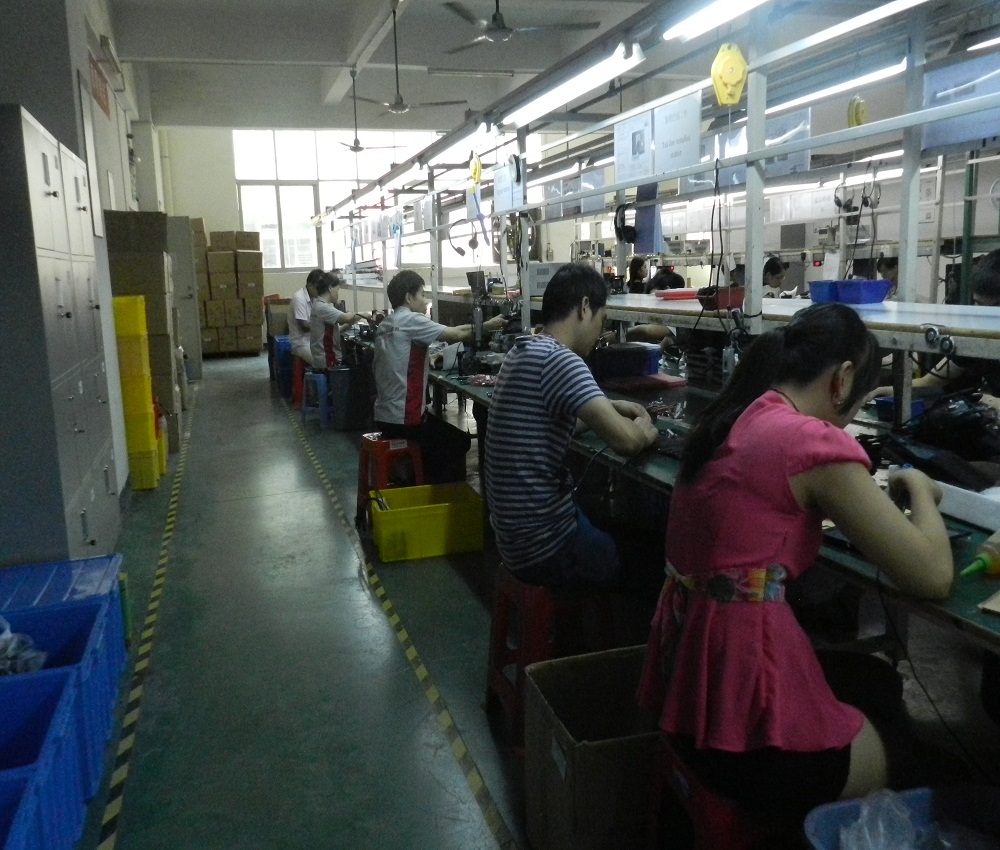

A: Yes, we are car monitor and car camera Factory in shenzhen,China.
Q4. How about your delivery time?
A: Generally, Our large order Delivery Time is 15 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?

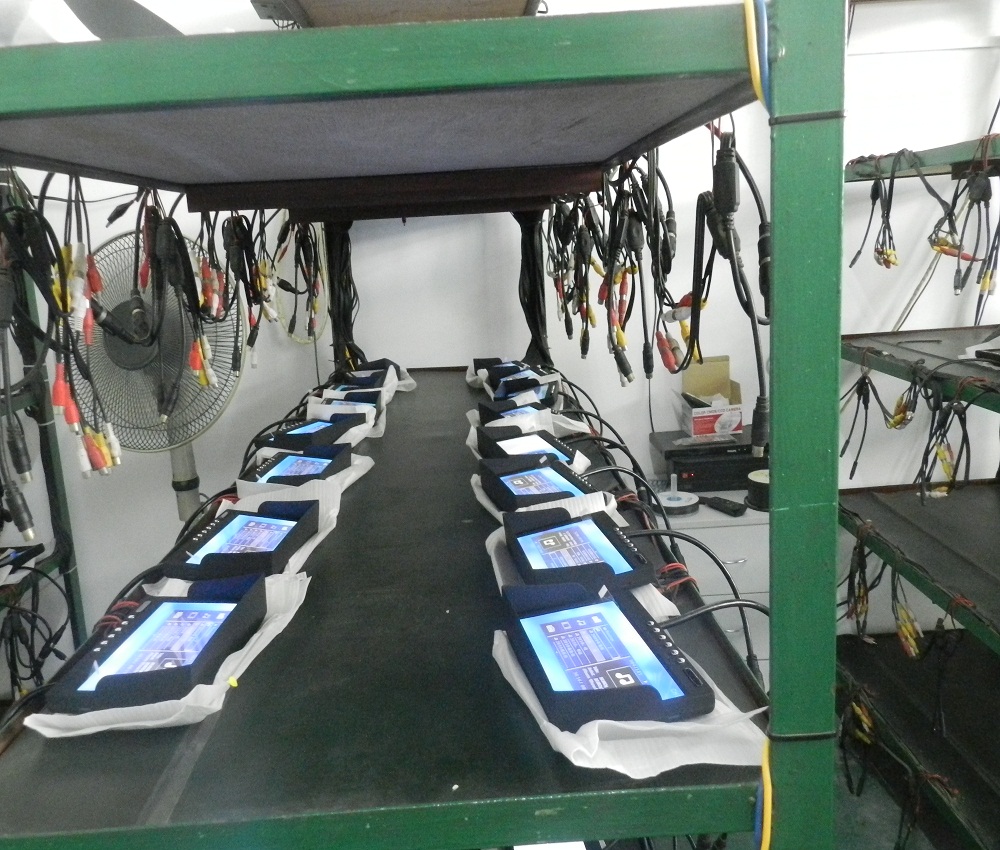

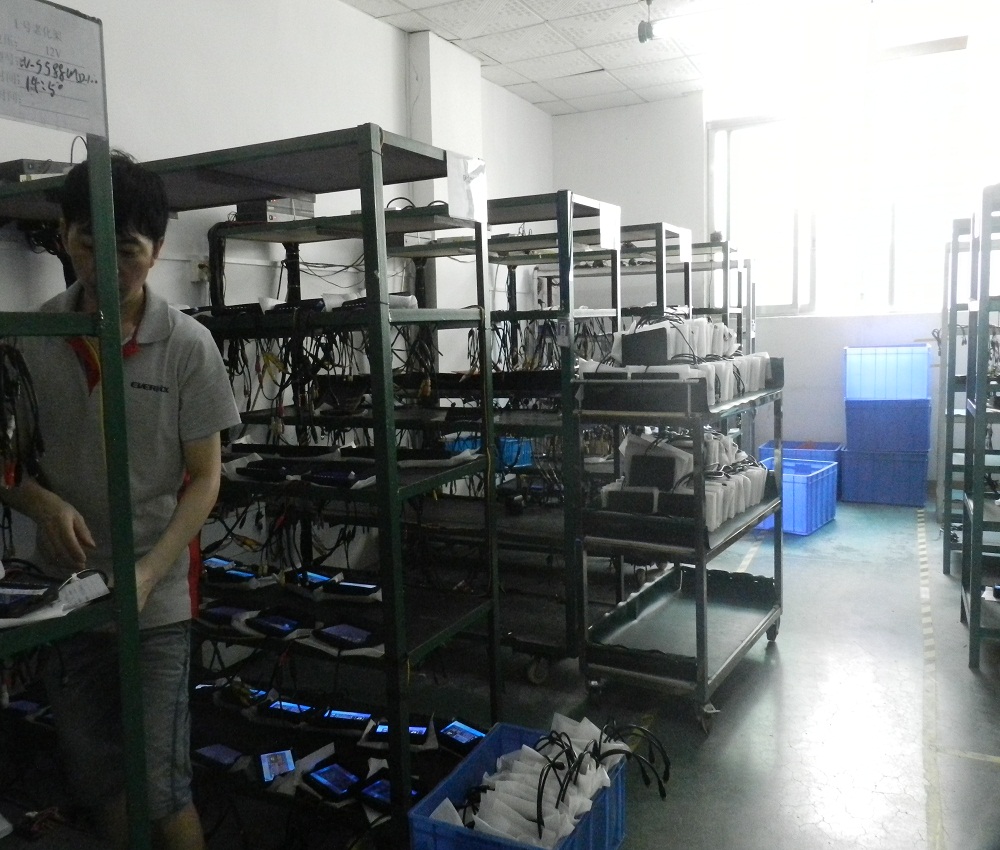

A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A: Keep stable quality products, Adjust workable marketing price.
